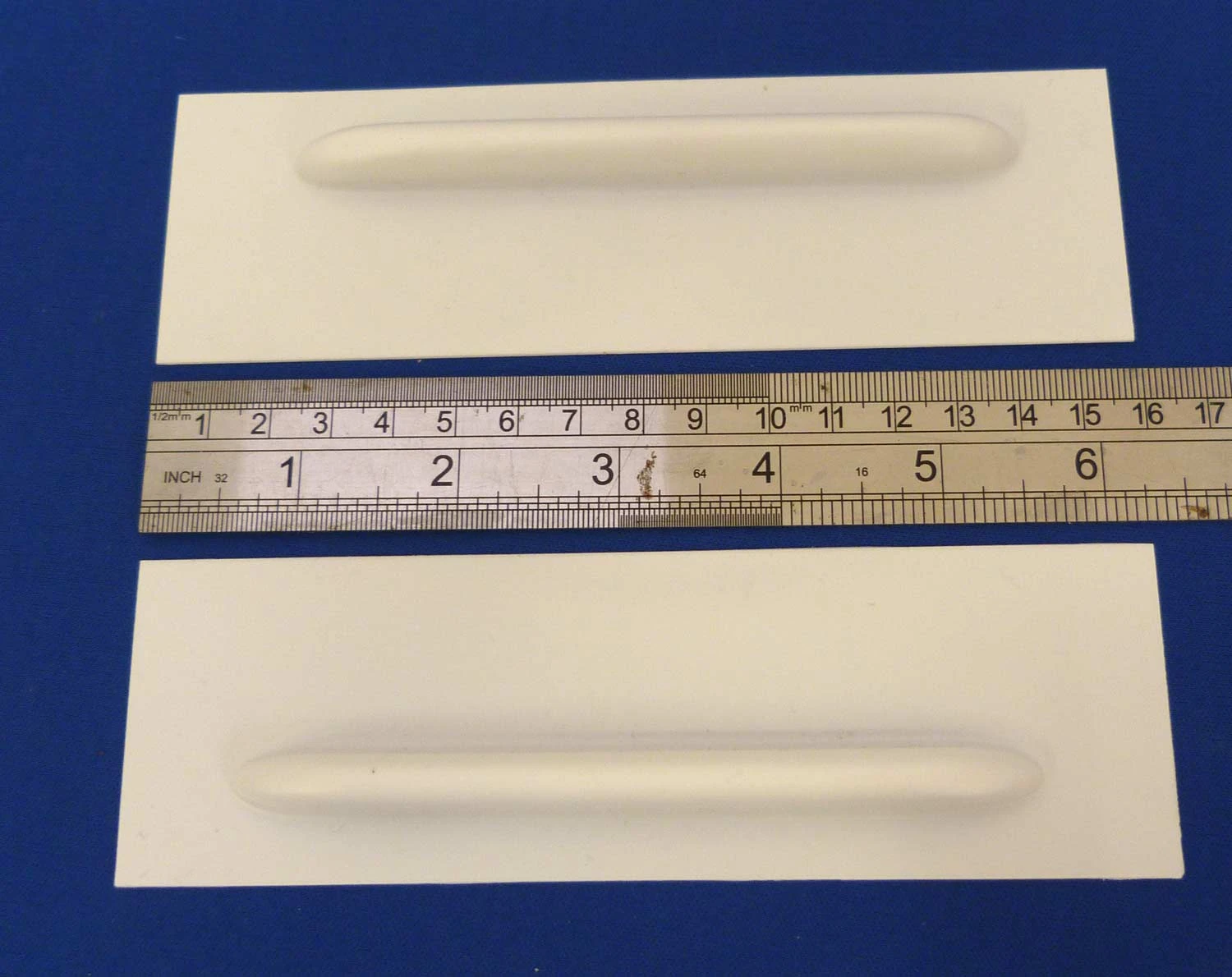

Small Plastic Shrouded Servo Cover (makes 2)

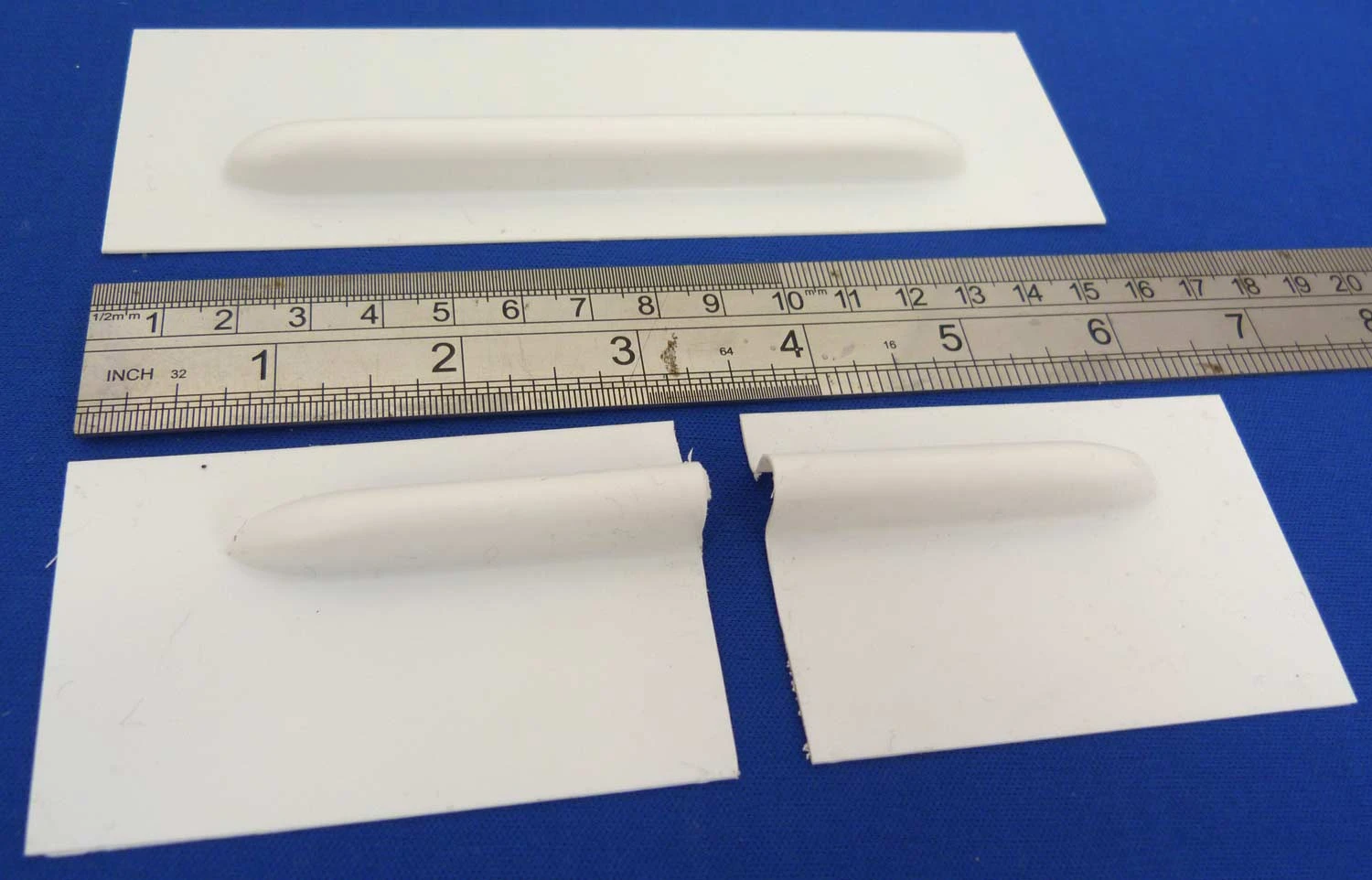

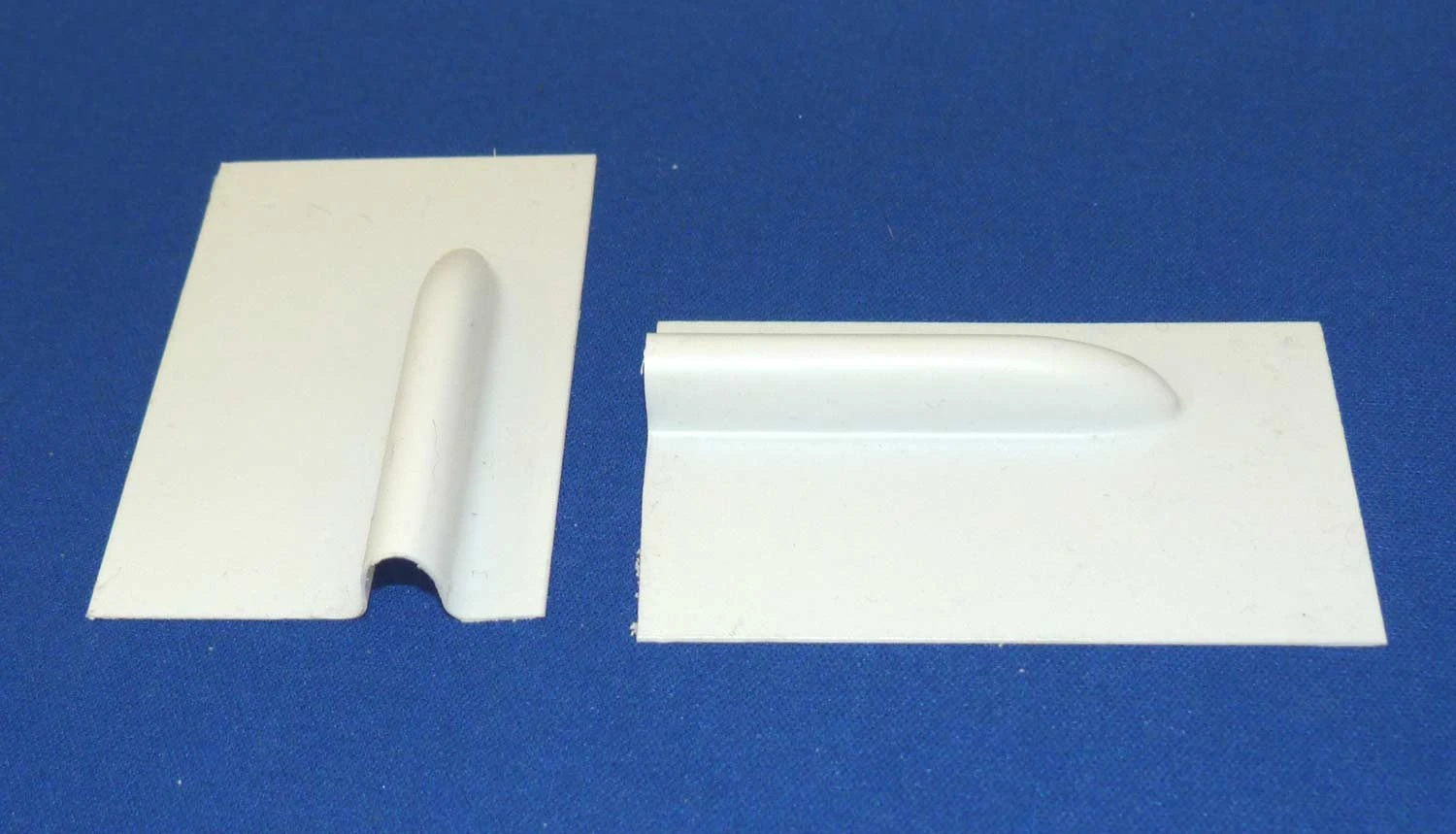

This economic white plastic wing servo cover molding is used to make a low drag shrouded servo cover for a flap or aileron servo. The molding should be cut in half to make a pair of servo covers.

These are light weight, and suitable for most wings.

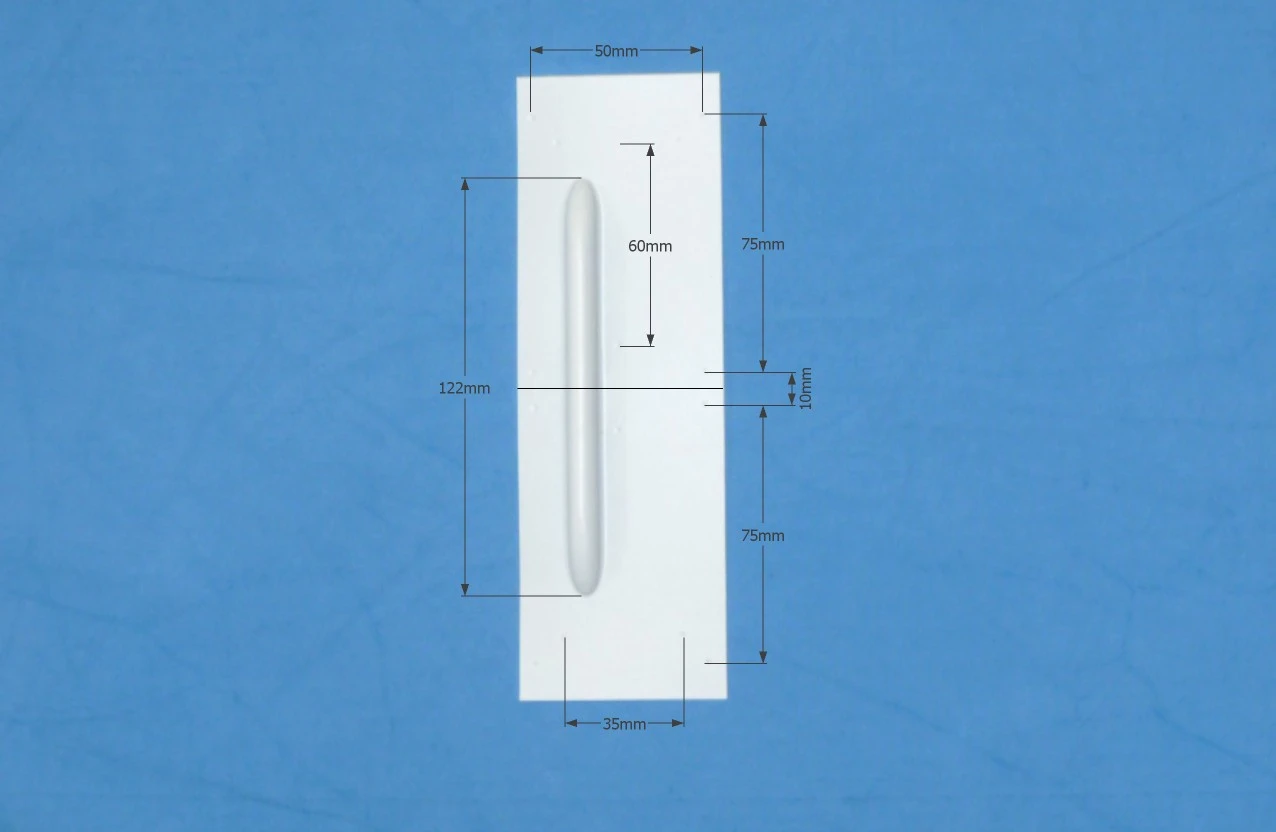

Small Plastic Shrouded Servo Cover Specification
Thickness of sheet	0.5 mm
Chordwise length	80 mm
Spanwise length	61 mm
Distance of shroud from edge	14 mm
Thickness of shroud	8 mm
Height of shroud	10 mm
Weight	2.2 g

Trim to size to suit your application and attach with clear tape.
