Samba RES Evo 2m

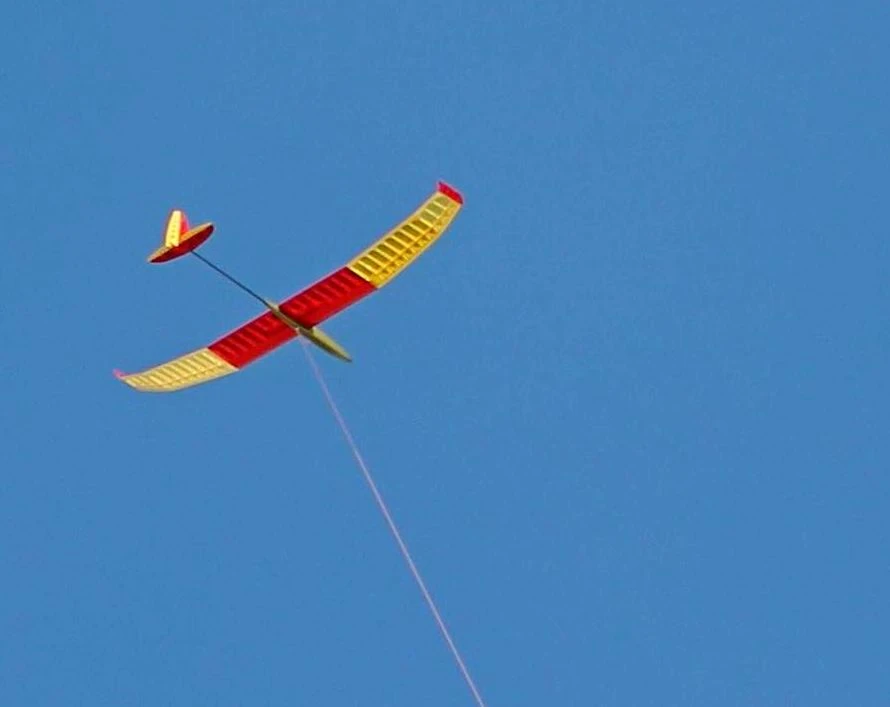

The Samba RES Evo the most sophisticated version of the well liked Samba RES F3-RES high-start launched glider. Like the previous model it is beautifully cut from the best quality balsa and ply, however this version can be built to a weight of approx 420 g, giving a very low wing loading an even better duration and light lift capabilities.

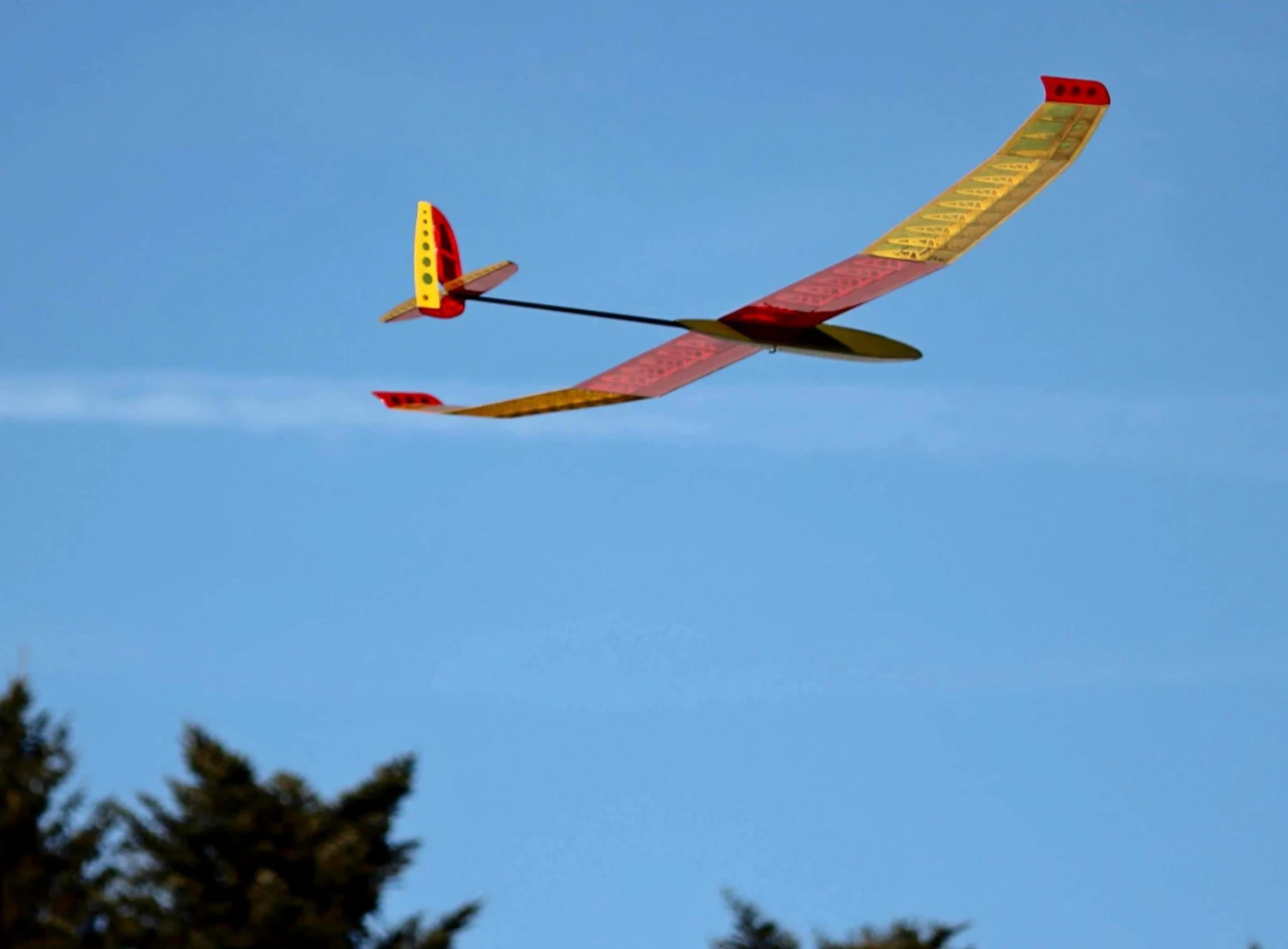

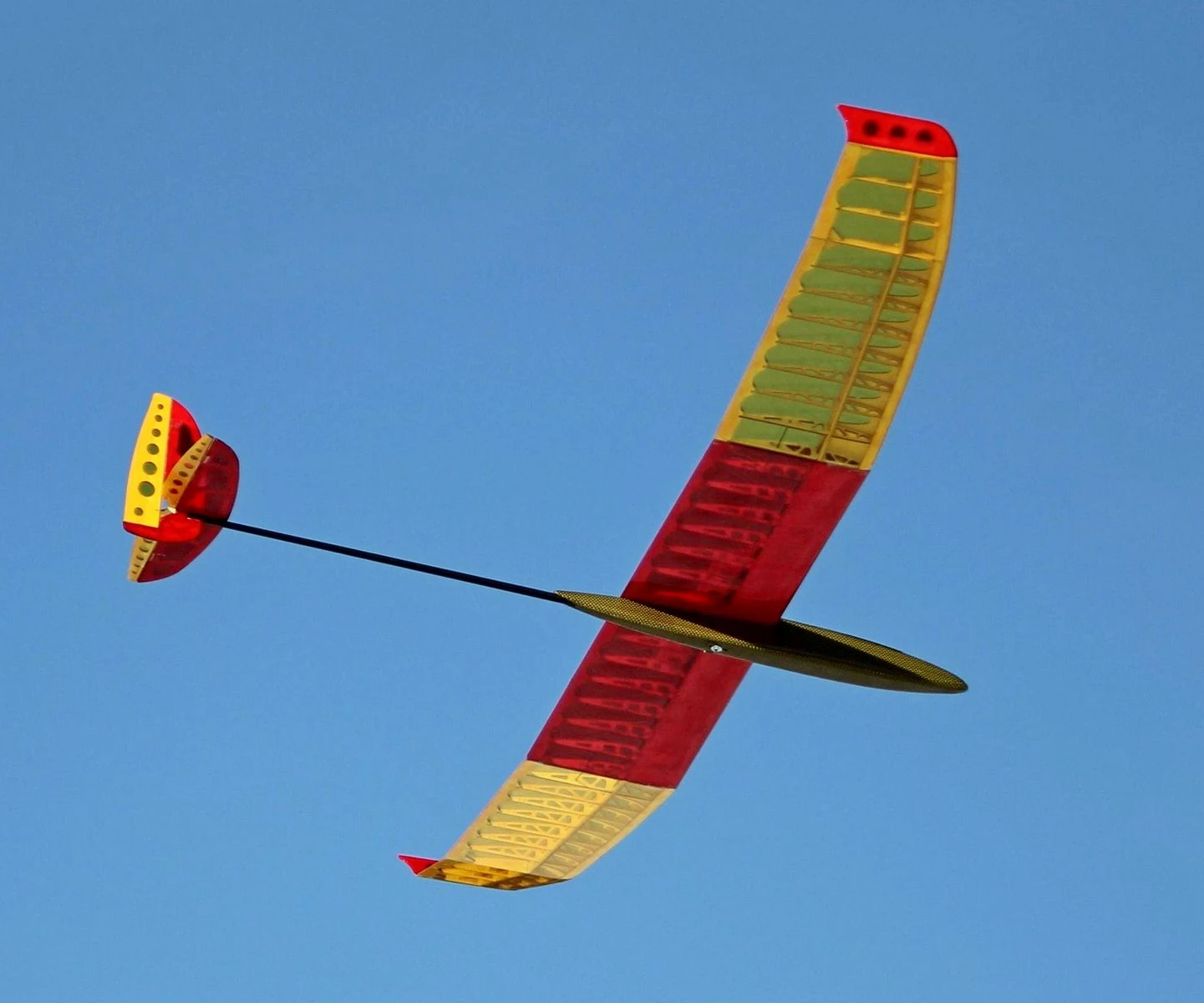

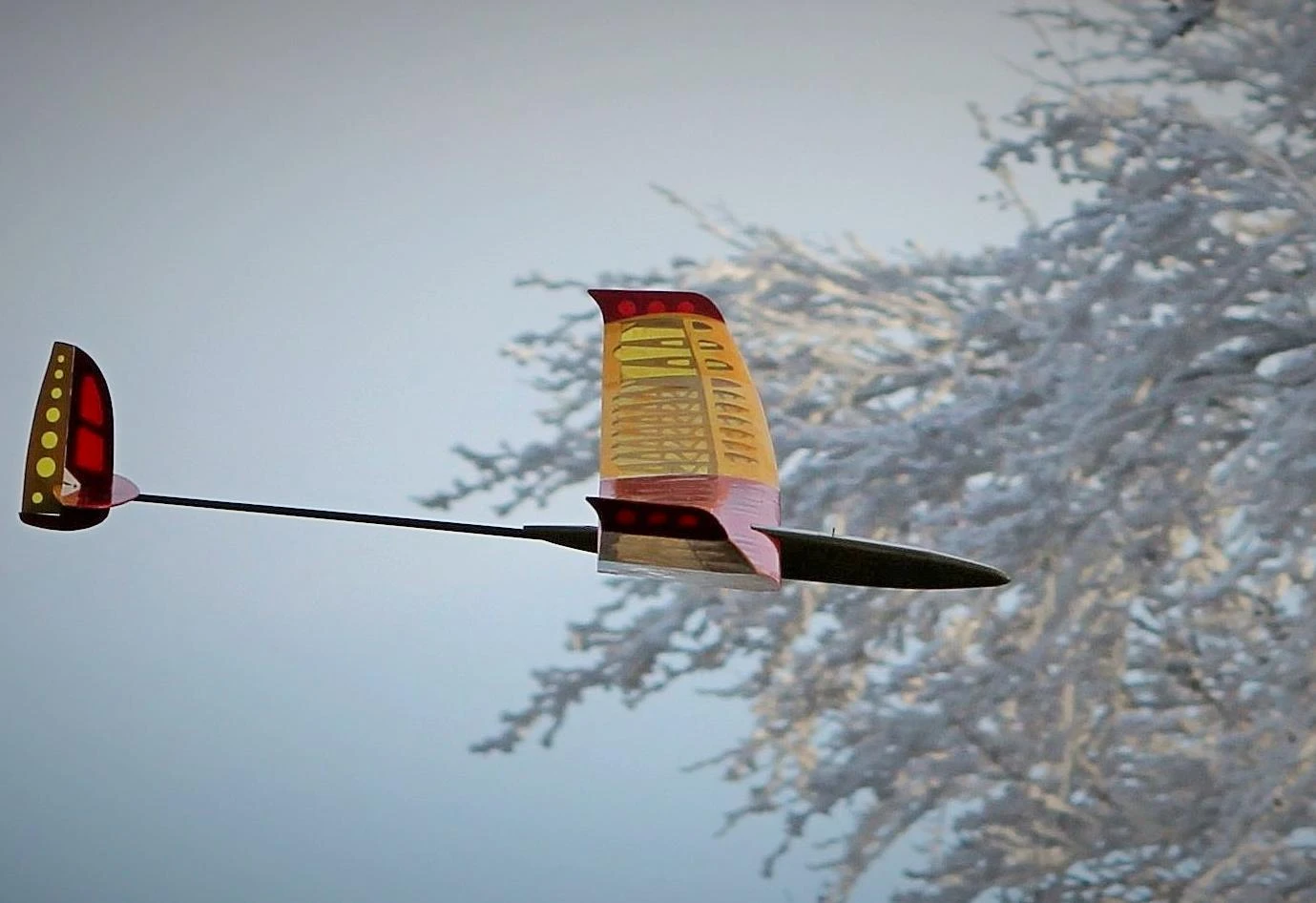

The fuselage uses a nicely shaped balsa pod with a carbon tube boom to minimise weight and wetted area. The wing has a partially sheeted Dbox wing as the best compromise between low weight and torsional strength. The small Dbox cut outs are designed to avoid any airfoil discontinuities and so retain laminar flow and minimise drag. The wing also utilises a carbon spar to achieve such a light weight.

The Samba RES Evo comes with all hardware and a superb full size plan and build manual (in German). An excellent English build manual can also be downloaded from here.

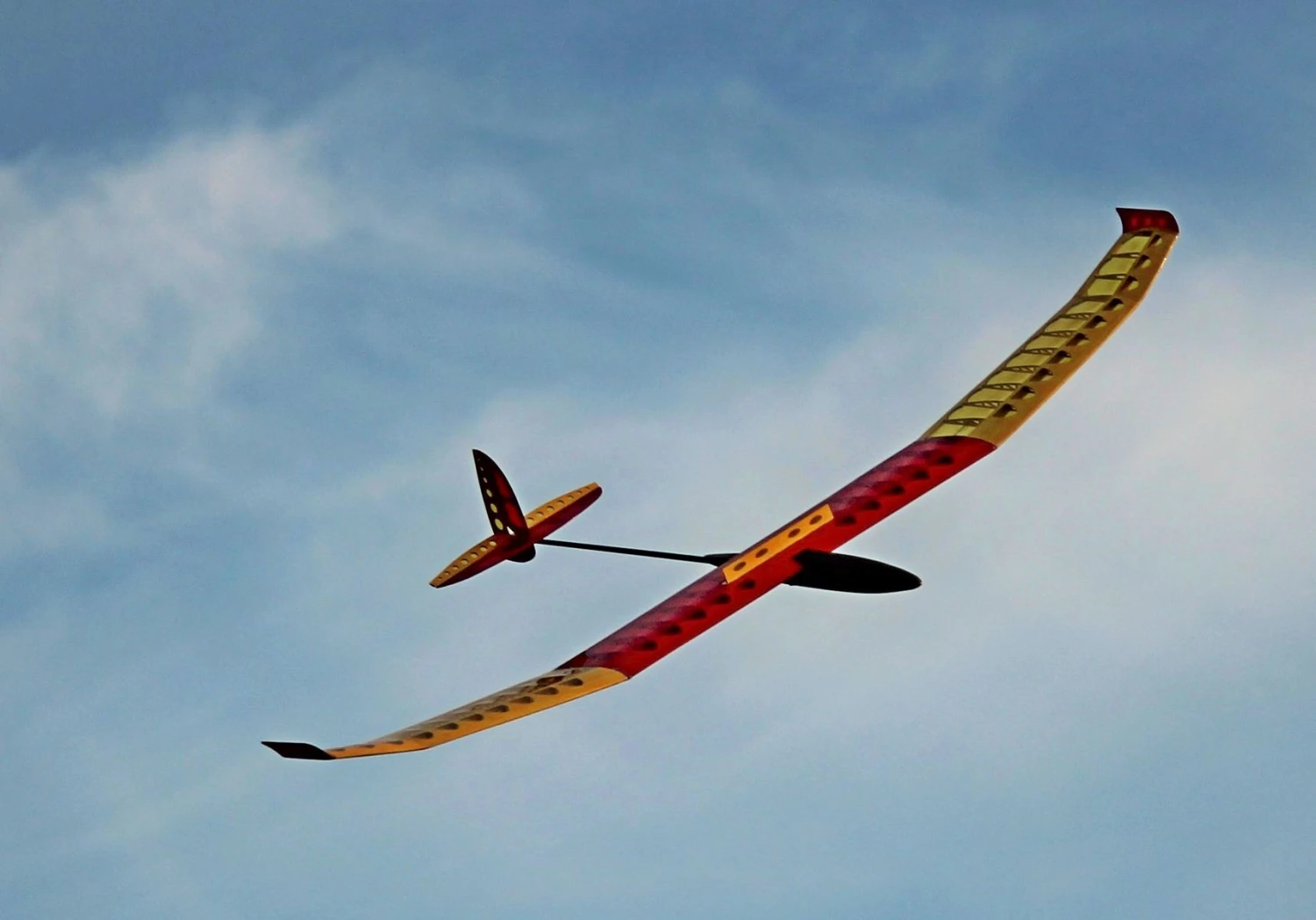

Due to the clear photos and well thought out design the model can be easily assembled by any modeller with a little experience. The holes in the Dbox centre panel shown in some of the photos are of a development model and have been removed from the production version to improve strength and rigidity.

Check out the excellent build photos in this RCGroups Samba RES Evo build thread.

Samba RES Evo Specifications
Wing span	2.0 m	79 in
Wing area	38.0 dm2	589 sq in
Length	108 cm	42.5 in
Flying weight from	420 g	14.8 oz
Wing loading	11.1 g/dm	3.6 oz/sq ft
Aspect ratio	10.5
Wing airfoil	S3021 mod
Dihedral (EDA)	10º
Centre of Gravity	72 mm from wing leading edge
Controls	Rudder, elevator, spoiler

Samba RES Evo Typical Weights
Wing centre	105 g	3.7 oz
Wing tips	90 g	3.2 oz
Fuselage pod	64 g	2.3 oz
Tailboom	12 g	0.4 oz
Tailplane & fin	19 g	0.7 oz
Covering	41 g	1.4 oz
Total structure	331 g	11.7 oz
Receiver	5 g	0.2 oz
Rudder servo	8 g	0.3 oz
Elevator servo	8 g	0.3 oz
Spoiler servo	8 g	0.3 oz
Battery	50 g	1.8 oz
Noseweight	10 g	0.4 oz
Flying weight	420 g	14.8 oz

Recommended RC
Rudder & elevator servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, KST X06, Graupner DES 261
Spoiler servo	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, KST X06, Graupner DES 261
Receiver	4 or 5 channel receiver to match your transmitter
Battery	Dream-Flight 300 mAh 4.8V NiMH, Dream-Flight 750 mAh 4.8V NiMH, HyperLipo 2S 300 mAh, 4 cell Eneloop 500-800 mAh NiMH, Radient 1S 700 mAh LiPo
