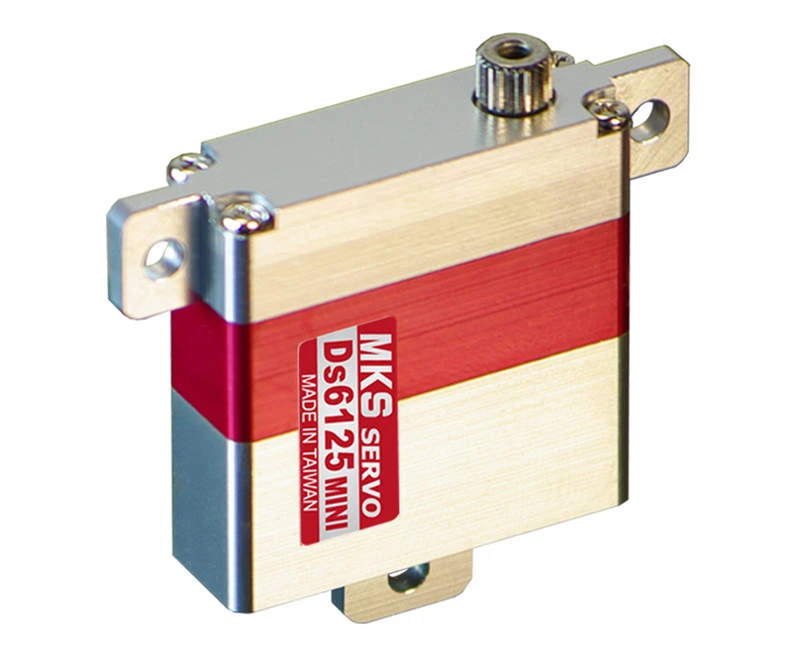

MKS DS6125 Mini – Discontinued, Replaced By MKS HV6130

This servo is DISCONTINUED and will never be available again – use the MKS HV6130 instead.

The HV6130’s mounting lugs are compatible wih the DS6125 Mini, it operates at a wider voltatage range, and has approximately the same torque.

MKS HV6130 Wing Servo

MKS HV6130H Horizontal Lug Servo

The MKS DS6125 Mini Wing Servo is the best 25g wing servo currently available. Its unbelievably good geartrain, strong alloy case, and excellent feedback system interfaced to brilliant firmware that drives the FET output staged amplifier, all make this the wing servo of choice for competition and all fast saiplanes.

At only 10mm thick this superb wing-servo can easily fit in thin wings. With a generous 5.8kg.cm torque the DS6125 Mini is appropriate for F3F, F3B, F3J, F5J and fast sport gliders.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

MKS DS6125 Mini Servo Specifications
Dimensions	30 mm wide x 10 mm thick x 30 mm high
Stall torque (4.8V)	4.8 Kg.cm	67 oz.in
Operating speed (4.8V)	0.12 sec/60°
Operating voltage	3.8V to 5.5V
Lead length	15 cm	5.9 in
Operating temperature	-10 to 60° C
Weight	25.3 g	0.89 oz
Bearings	Dual ball bearings
Gear material	Chrome titanium alloy
Position Feedback	Direct drive potentiometer
Driver Type	FET
Programmable	No
Dead band	1 µs
Feedback frequency	333 Hz
Supplied accessories	2 substantial plastic output arms, 1 output disc, 2 output arm retaining screws, 6 mounting screws
Optional accessories	Frame for MKS DS6125 Mini, MKS Frame for DS6125 Mini, Frame with bearing for the MKS DS6125 Mini, Integrated Drive System for MKS DS6125 Mini, MKS Plastic Servo Output Arms, MKS Heavy Duty Plastic Servo Output Arms, MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms, MKS RDS Adaptor, MKS 1.5A SBEC, MKS 2A SBEC
