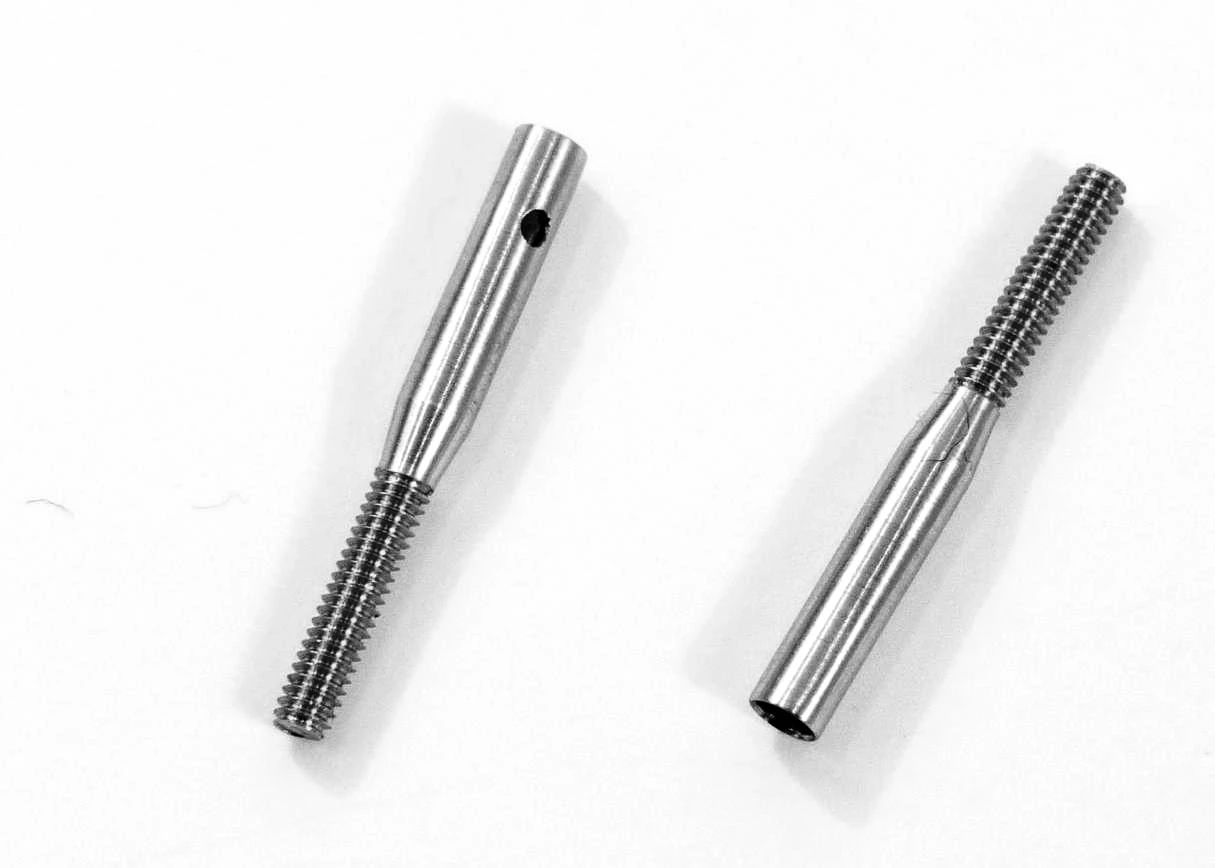

M2 Stainless Steel Pushrod Ends For 1.8mm Rods (2)

A pair of high quality stainless steel pushrod ends with M2 threads cut at one end and a tube to take a 1.8mm or smaller carbon or metal pushrod.

Note two SS pushrod ends only are supplied, rods and clevises must be purchased separately. Suitable for 1.6 mm to 1.8 mm carbon or steel rods. Attach by coating the pushrod in epoxy or thick CA. The hole is to allow the air and excess glue to escape. Degrease before gluing.

Stainless Steel 1.8mm Long Pushrod End Specification
Pushrod hole size	1.8 mm
Pushrod tube length	10 mm
Threaded portion length	11.5 mm
Overall length	26 mm
Thread size	M2
Weight (each)	0.70 g
