M2 Aluminium Pushrod Ends For 3mm Rods (2)

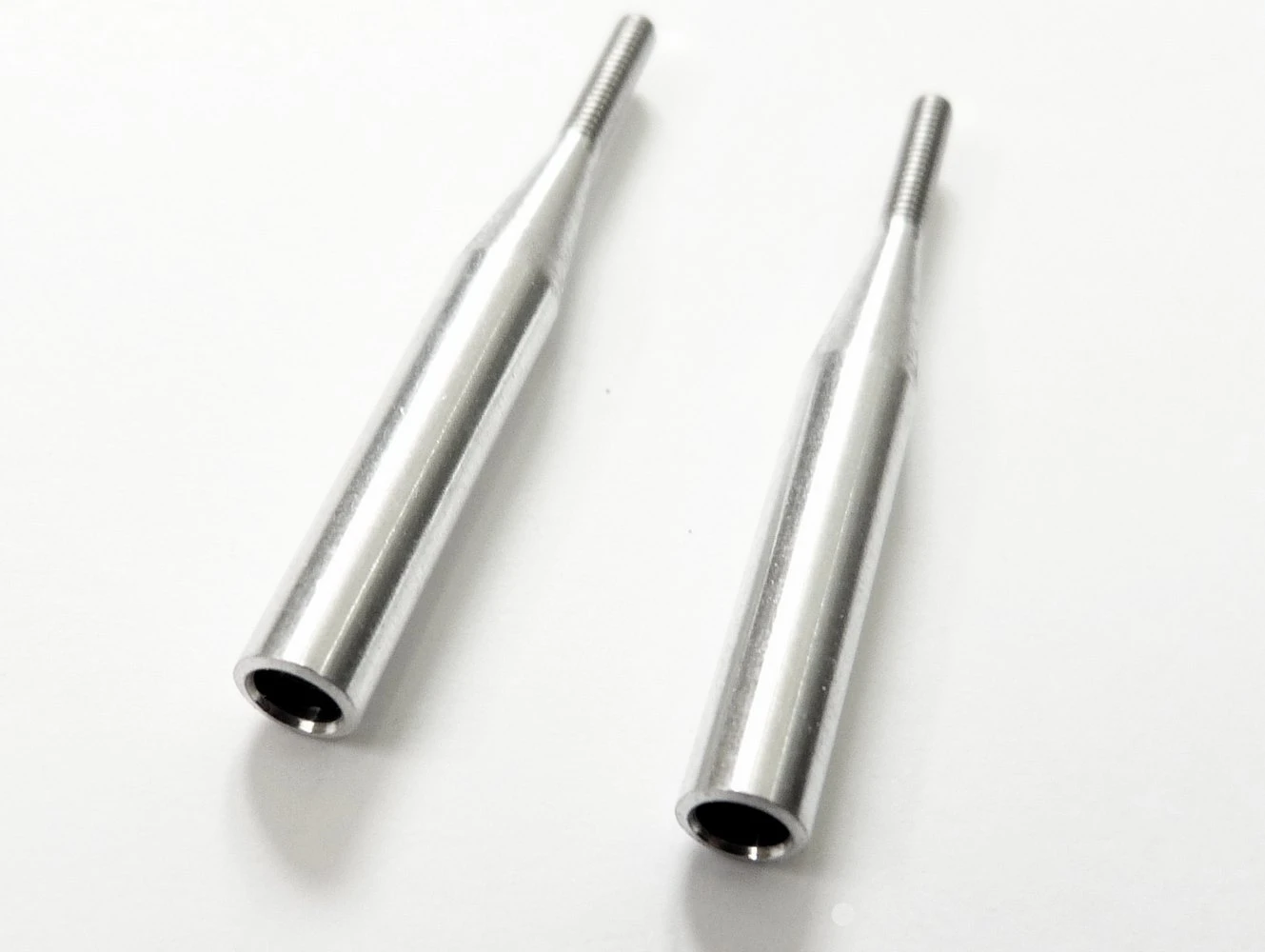

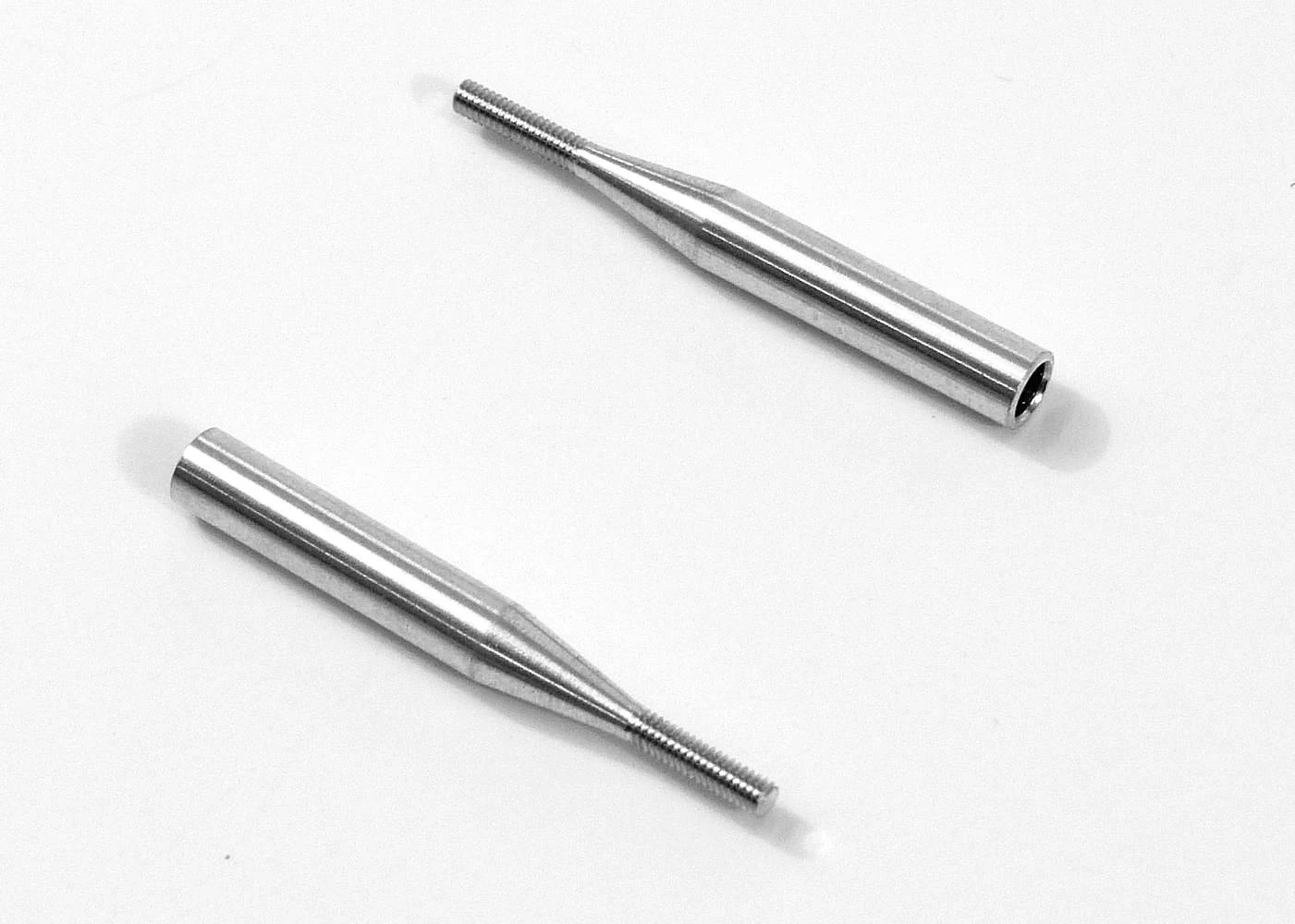

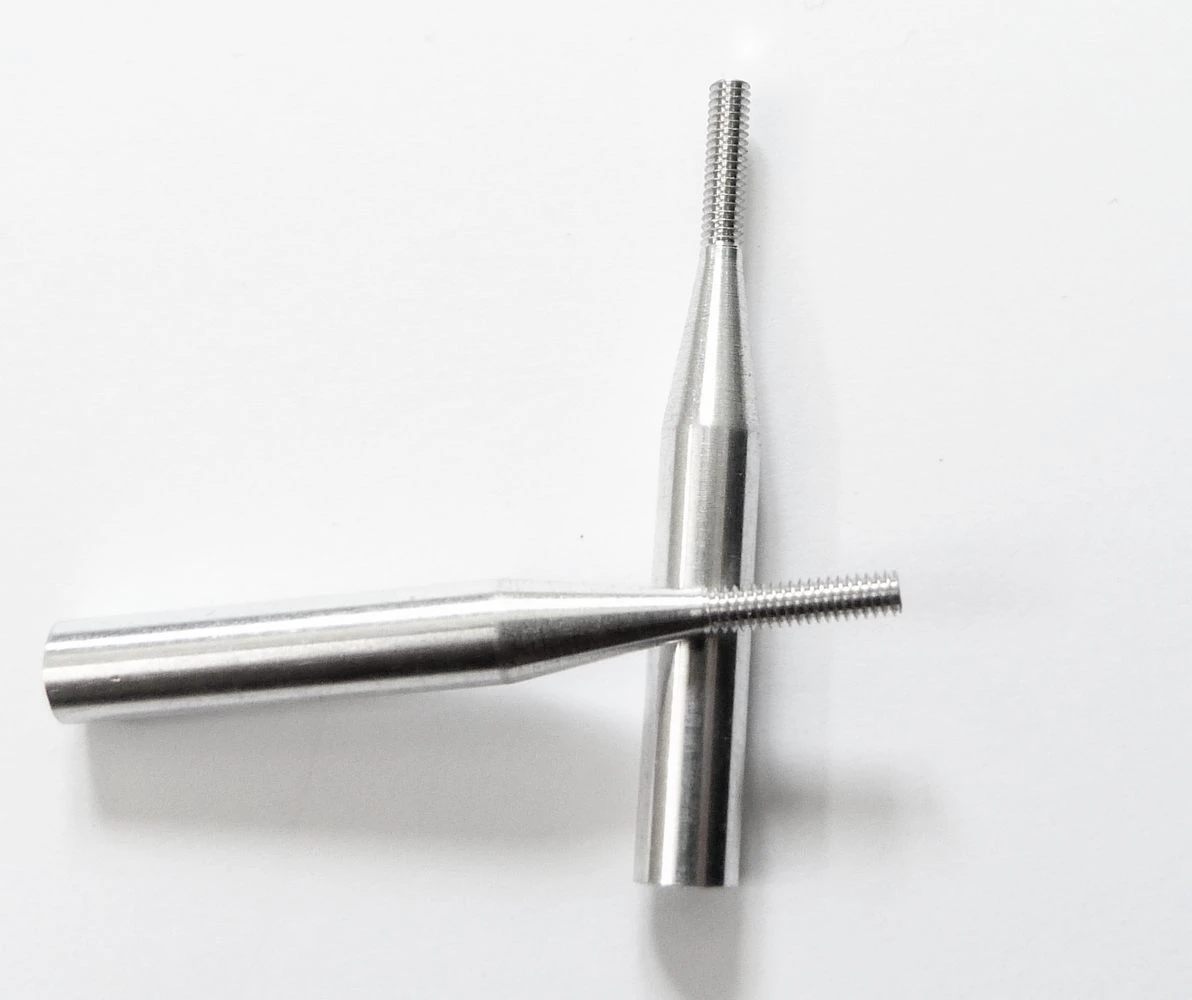

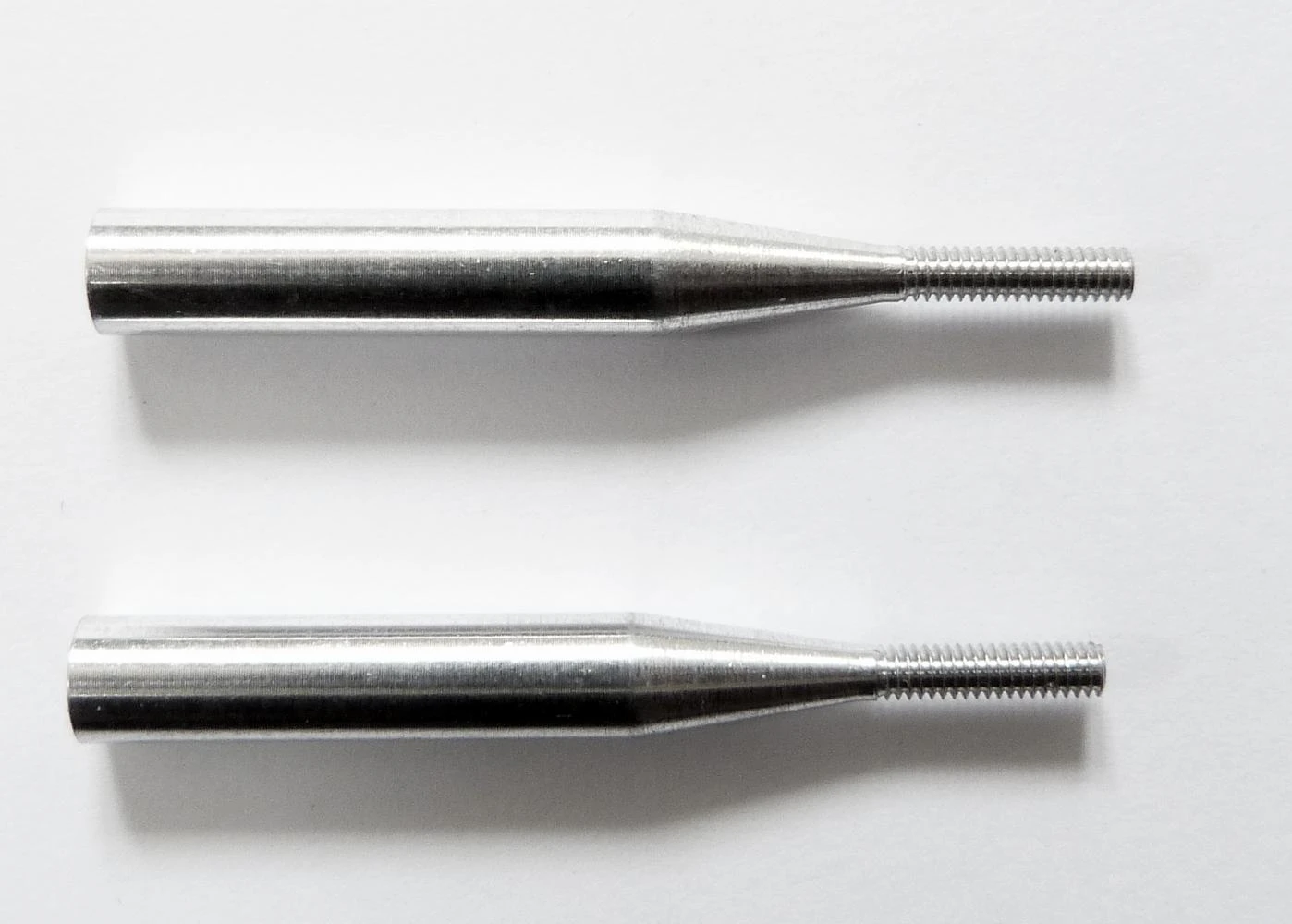

A pair of high quality aluminium pushrod ends with M2 threads cut at one end and a tube to take a 3mm carbon rod (or other material).

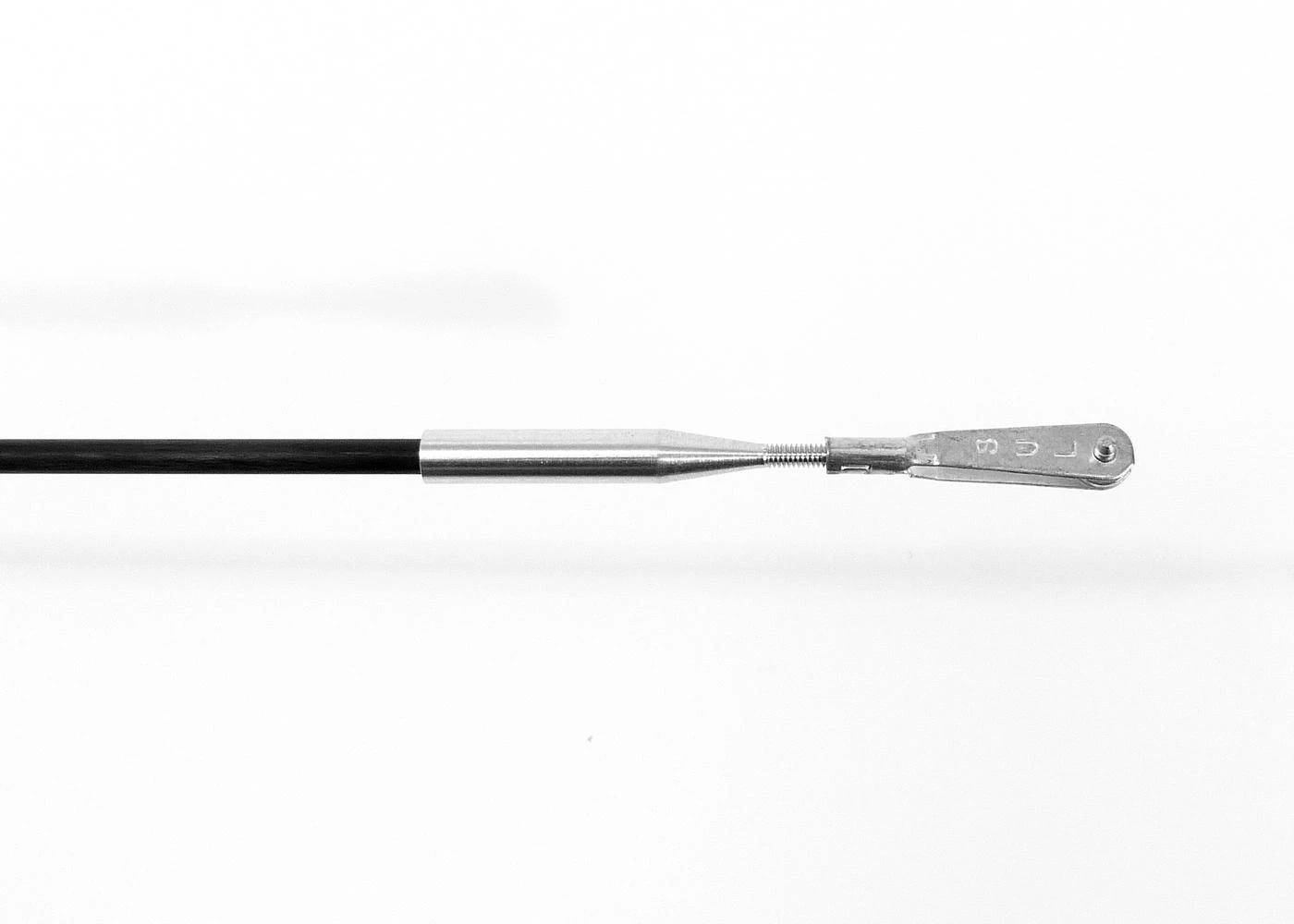

Note two aluminium pushrod ends only are supplied, carbon rods and clevises must be purchased separately. Suitable for 3 mm carbon tubes or rods. Glue using epoxy or thick CA. Degrease before gluing.

3mm Long Pushrod End Specification
Pushrod hole size	3.05 mm
Pushrod tube length	19 mm
Threaded portion length	9.0 mm
Overall length	36.4 mm
Thread size	M2
Weight (each)	0.72 g
