Leomotion/Neu/P29 Motor Mount – 38mm

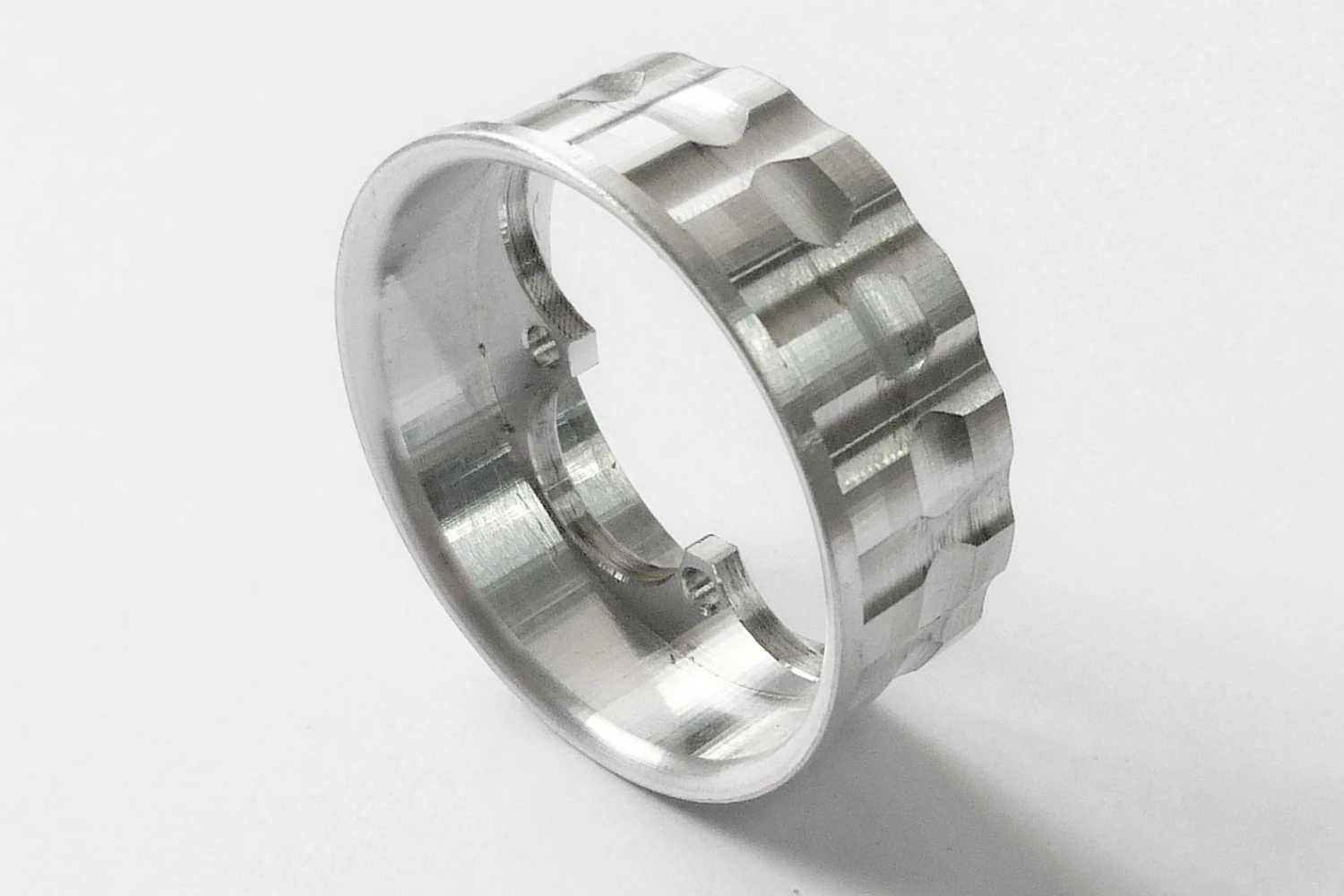

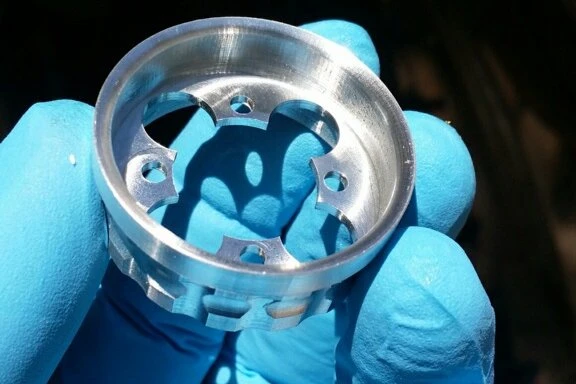

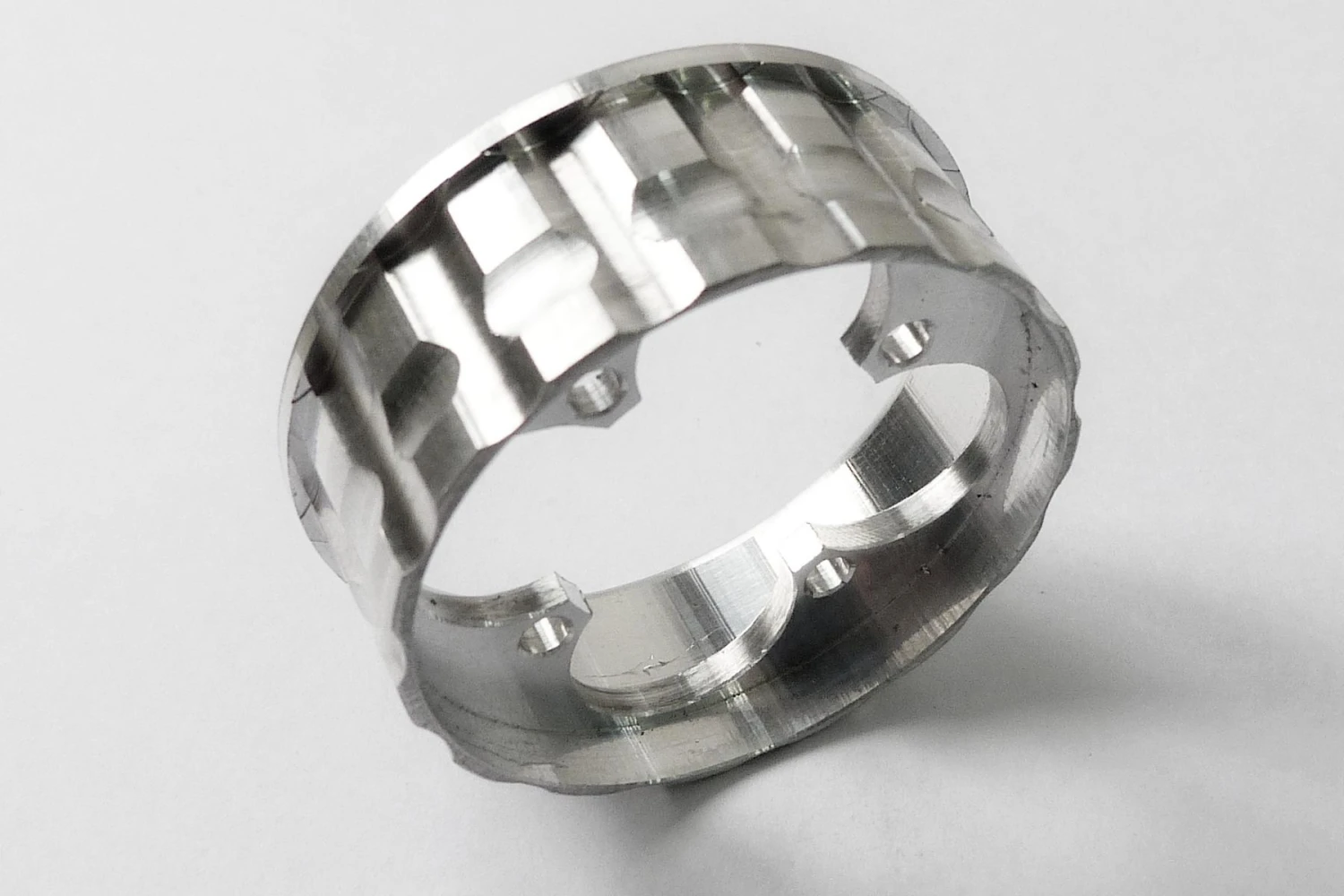

The PNC Innovations 38 mm Leomotion/Neu/P29 Motor Mount is a beautifully CNC machined motor mount for securely attaching Leomotion and Steve Neu brushless motors fitted with a P29 6.7:1 gearbox to the front of 38 mm diameter fuselages, like the Supra F5J, the AVA Pro, Egida and many F5J fuselages.

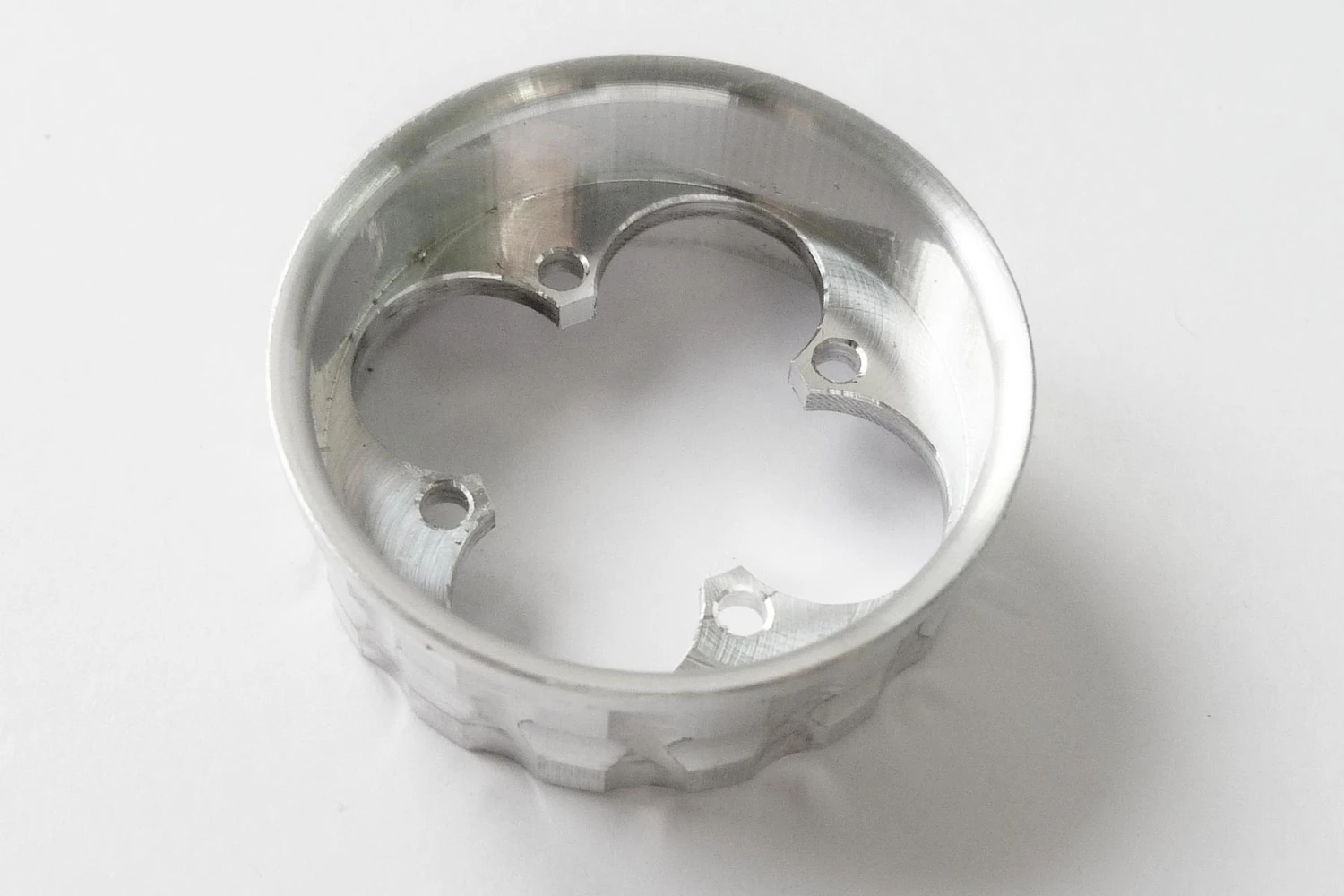

The mount has 4 M2.5 holes on a 23 mm diameter circle

Leomotion/Neu/P29 38mm Motor Mount

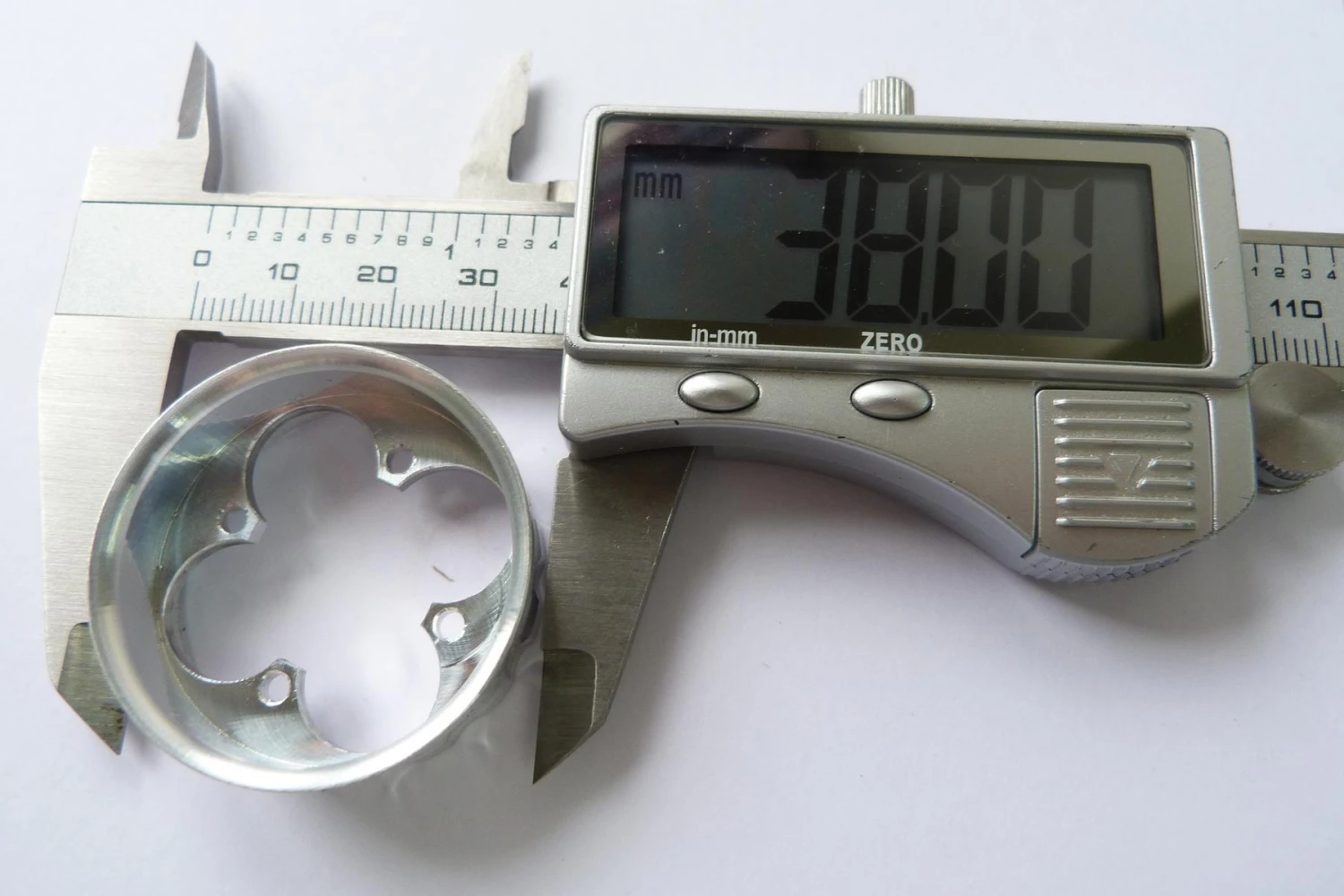

Fuselage outside diameter	38 mm
Fuselage internal diameter	36 mm
Predrilled holes	4 holes on a 23 mm circle
Motor mounting hole diameter	2.5 mm

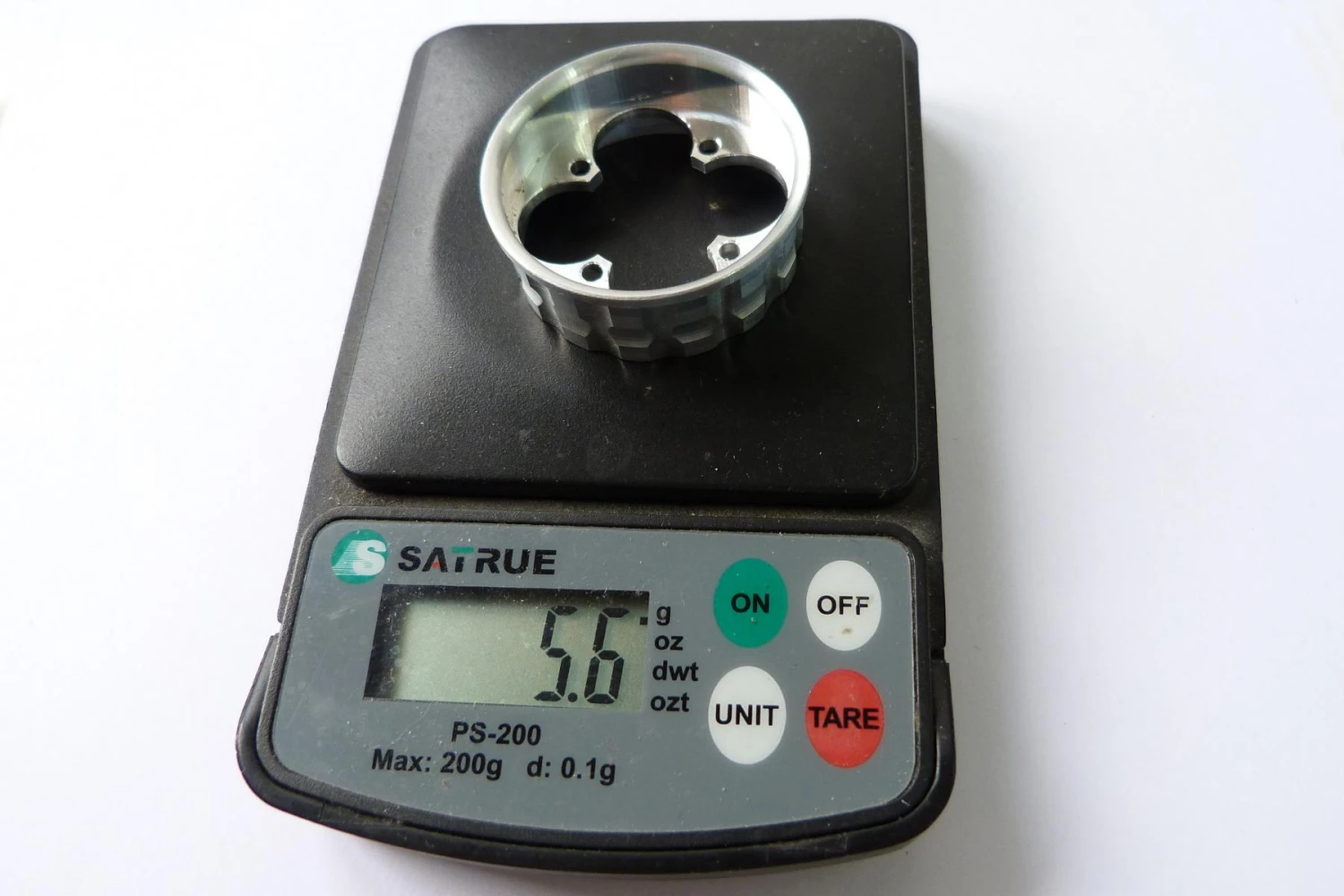

Weight	4g

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
