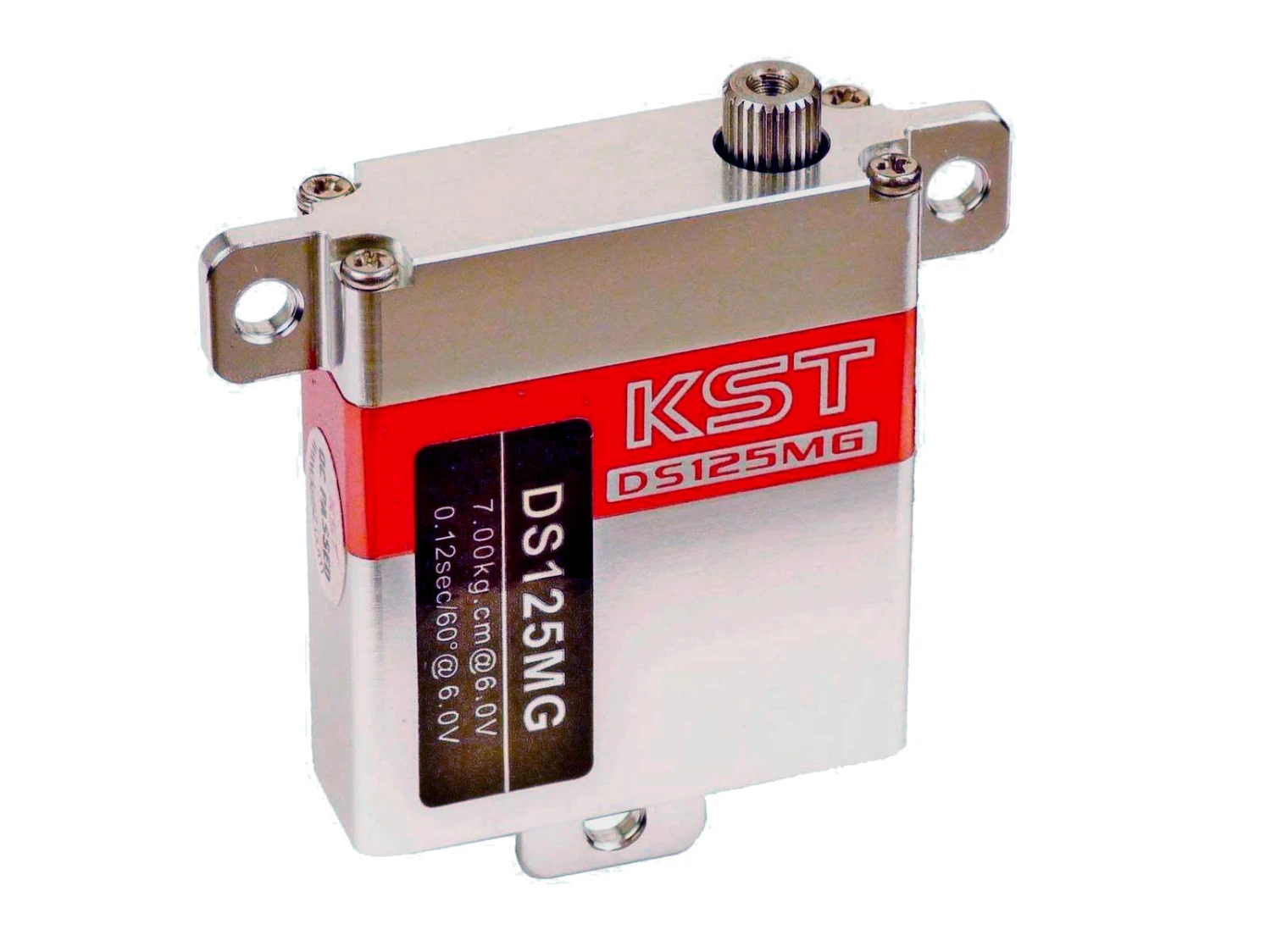

KST DS125MG WING Servo – 7.0Kg.cm 0.12s 28.0g 10mm

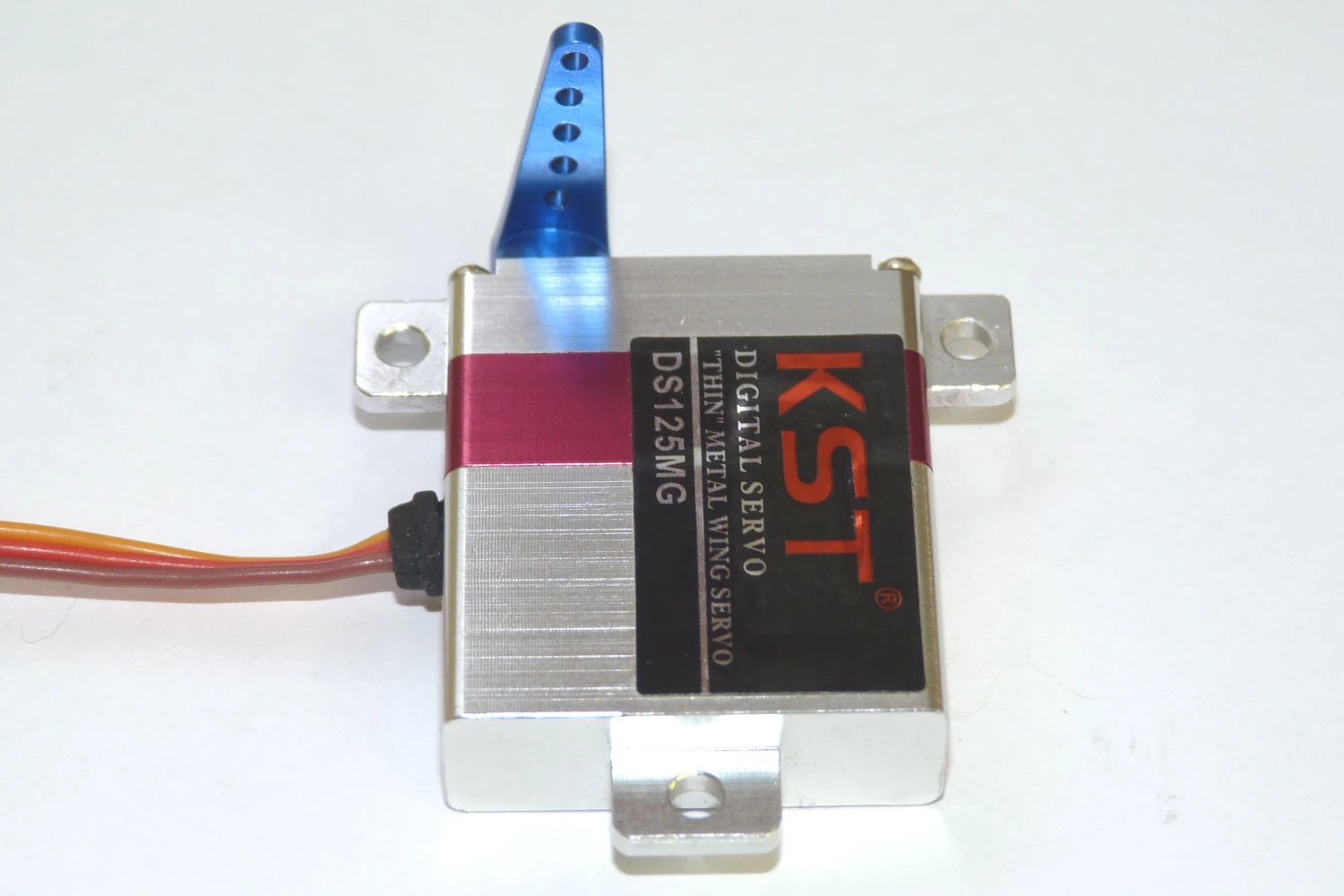

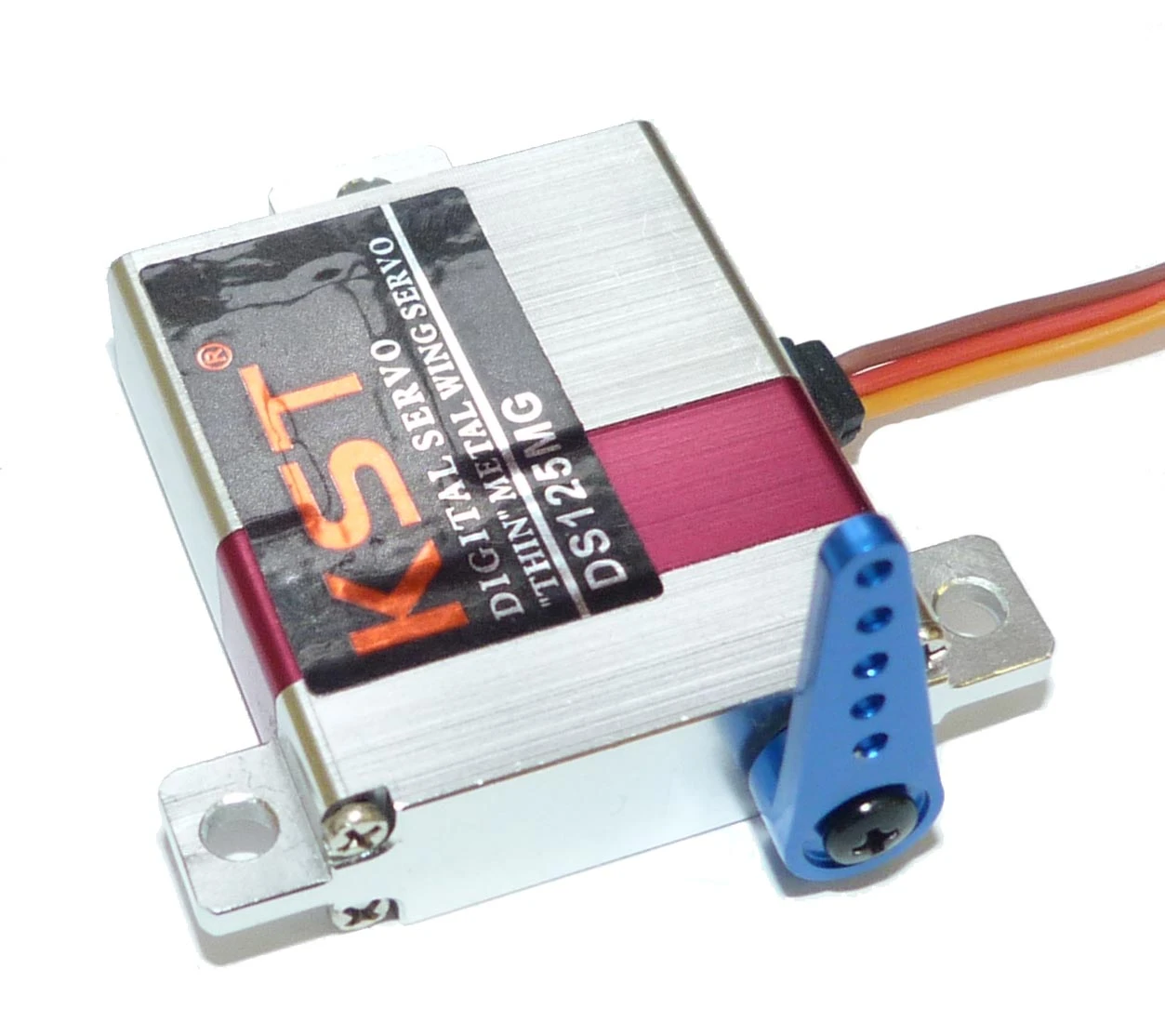

The KST DS125MG Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo it has no geartrain slop.

At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 7kg.cm torque the KST DS125 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.

No longer supplied with metal output arms.

KST DS125MG WING Servo Specifications
Body dimensions	30.0 mm wide x 10.0 mm thick x 35.5 mm high	1.18″ wide x 0.39″ thick x 1.40″ high
Max dimensions	42.0 mm wide x 10.0 mm thick x 47.0 mm high	1.65″ wide x 0.39″ thick x 1.85″ high
Stall torque (4.8V)	6 Kg.cm	83 oz.in
Stall torque (6V)	7 Kg.cm	97 oz.in
Stall torque (6V)	7 Kg.cm	97 oz.in
Weight	28 g	0.99 oz
Lead length	16 cm	6.3 in
Operating speed (4.8V)	0.15 sec/60°
Operating speed (6V)	0.12 sec/60°
Operating speed (6V)	0.12 sec/60°
Operating voltage	4.8V to 6V
Operating temperature	-10 to 60 °C
Bearings	2 ball bearings
Gear material	Bronze
Case material	Aluminium
Motor type	DC motor
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	800 -2200 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

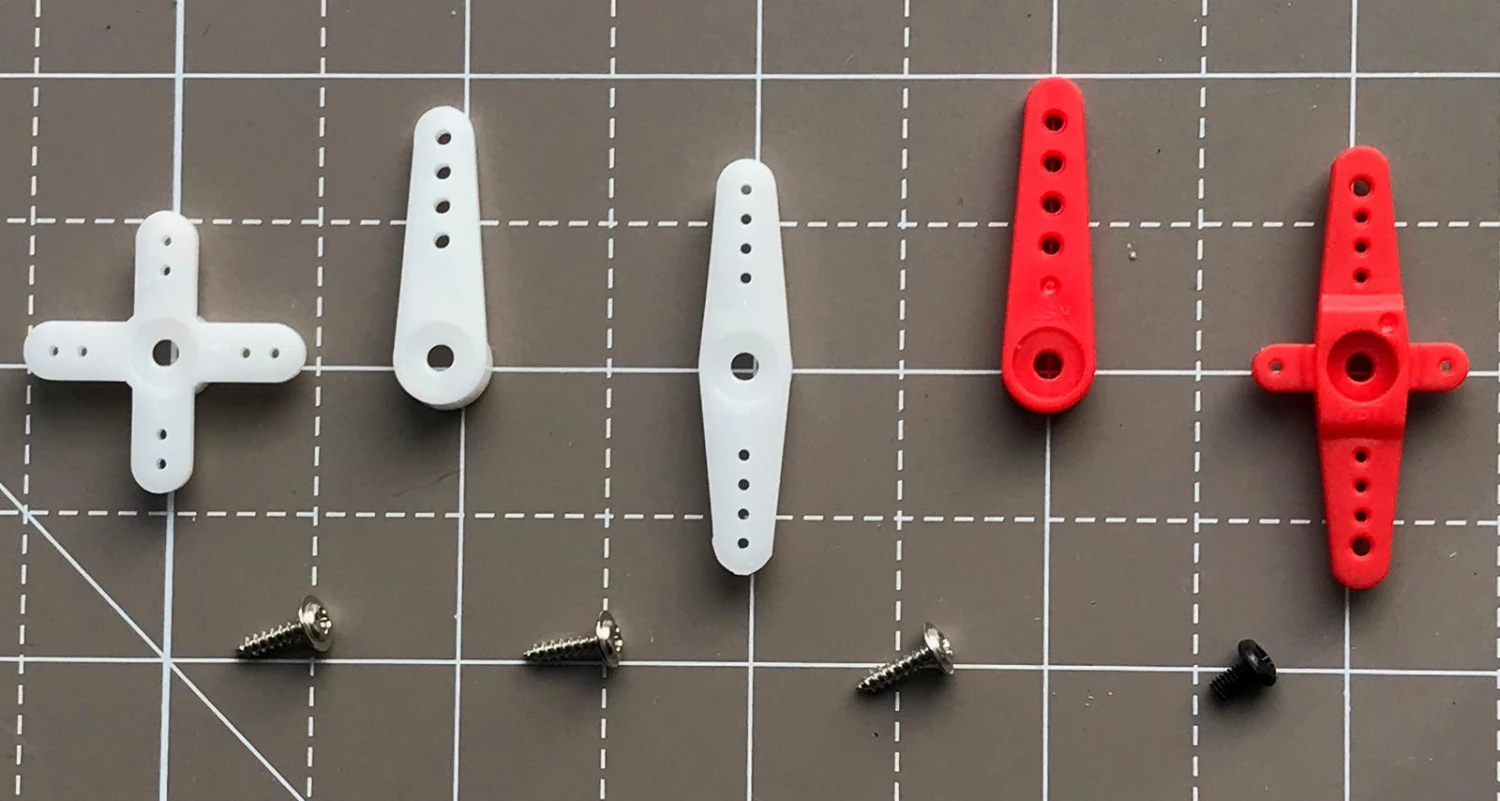

Supplied accessories	3 white plastic output arms, 2 red extra strong plastic output arms, 2 output arm retaining screws, 3 mounting screws
Optional accessories	Frame with bearing for the KST X10, Ply Frame for KST X10, KST Plastic Servo Arm Set, KST 25T-5 Metal Servo Output Arm, Gear Set for KST X10
