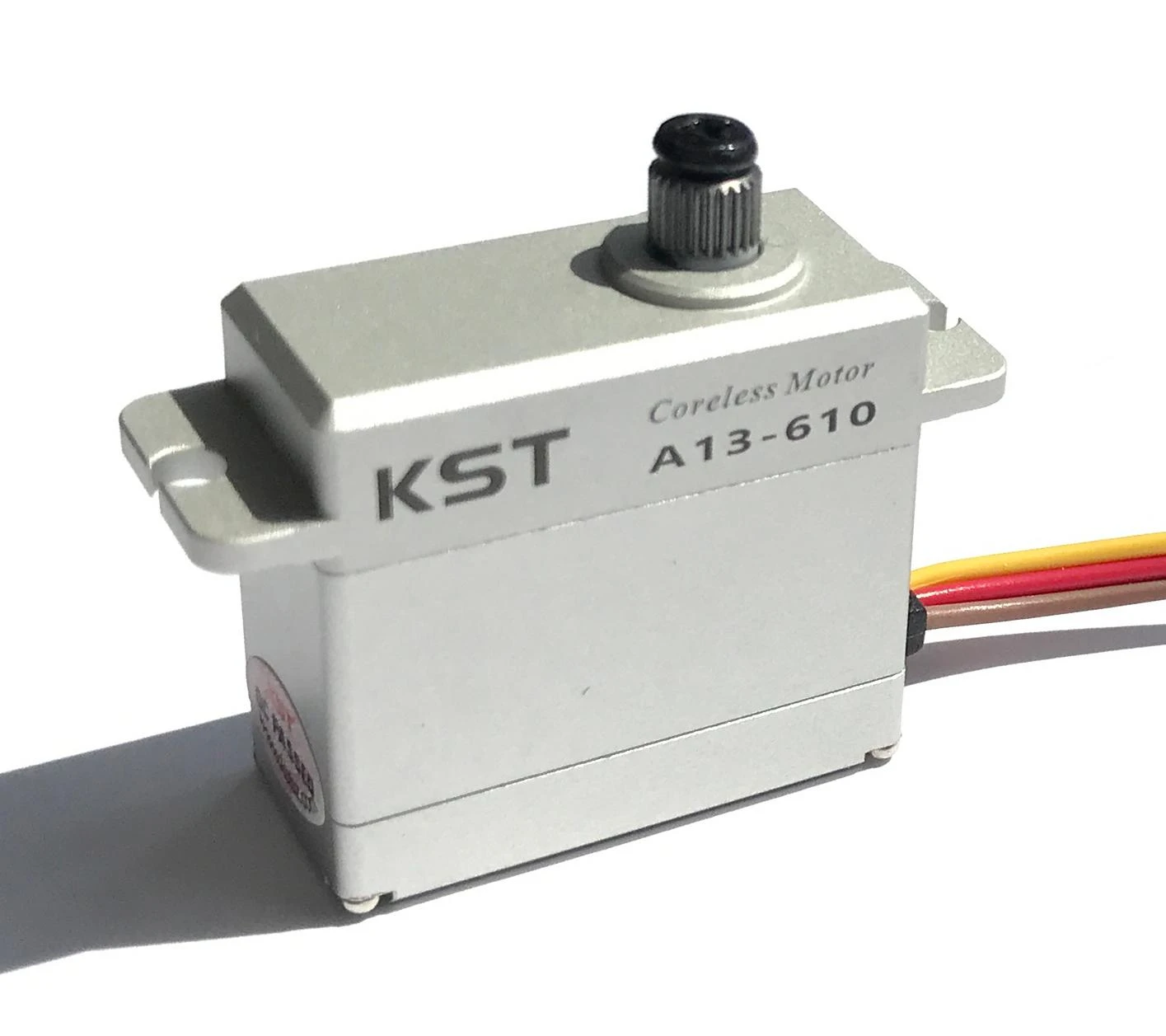

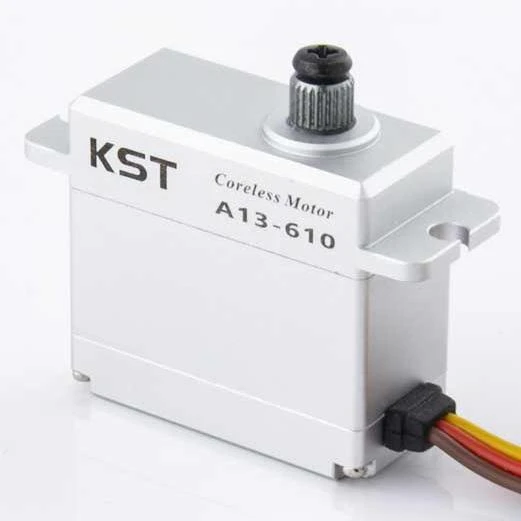

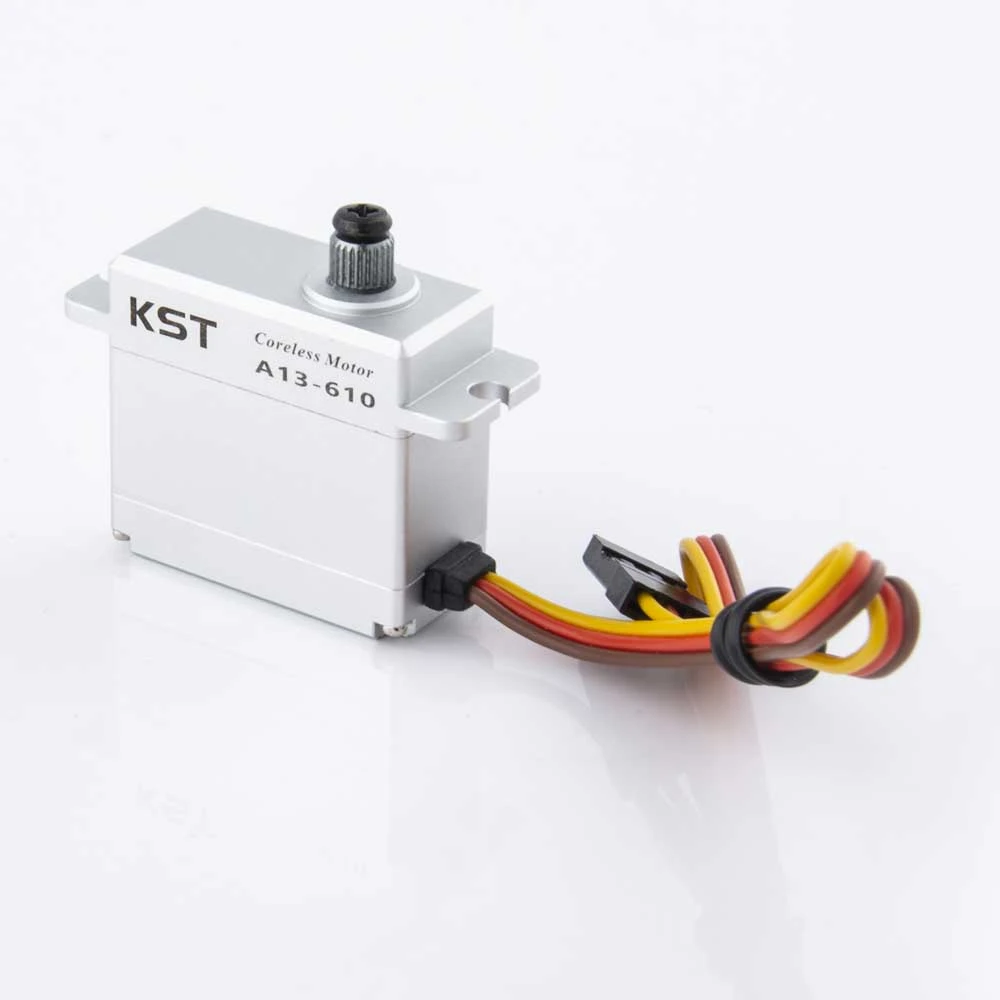

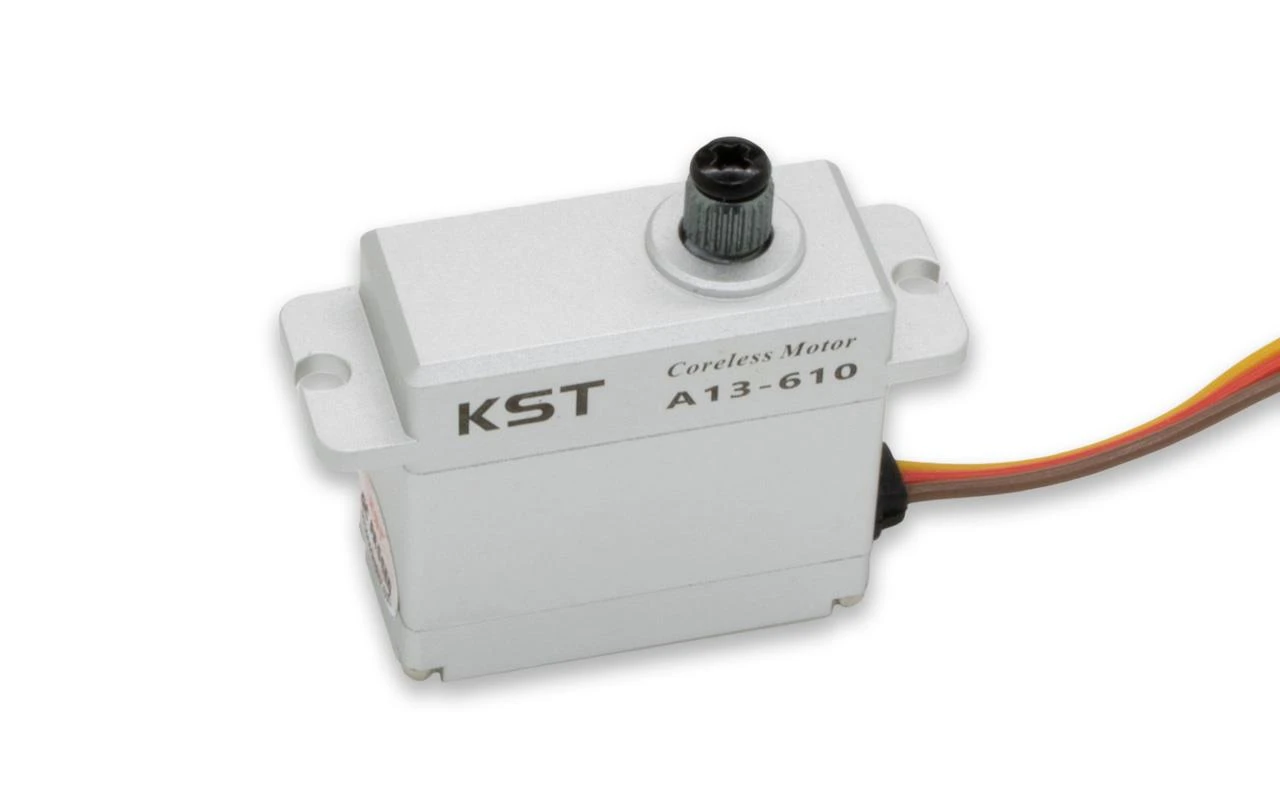

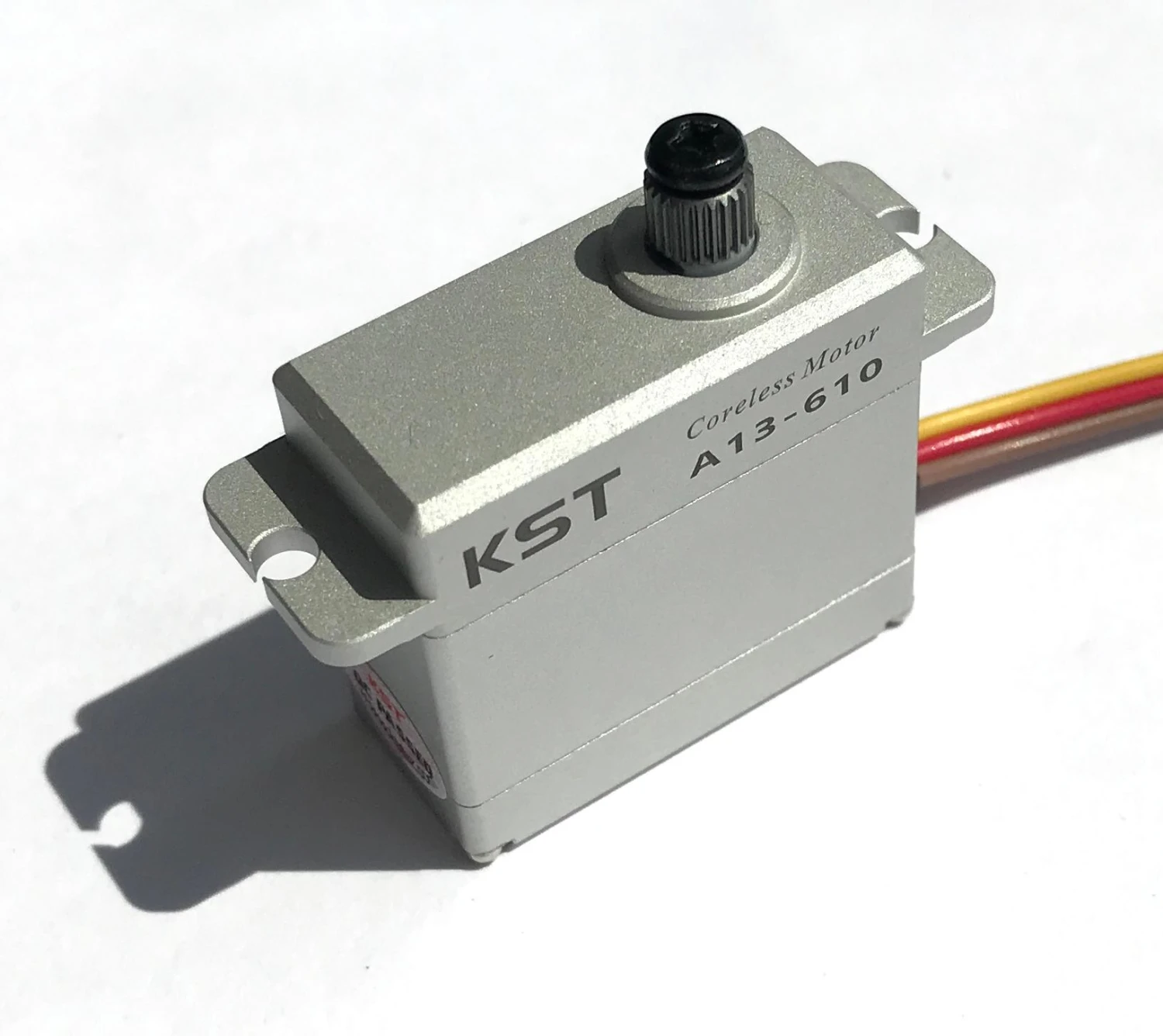

KST A13-610 Servo – 9.0Kg.cm 0.10s 24.0g 13mm

New KST A13-610 is a medium to high voltage range metal cased servo with excellent speed and torque specifications. The KST A13-610 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders.

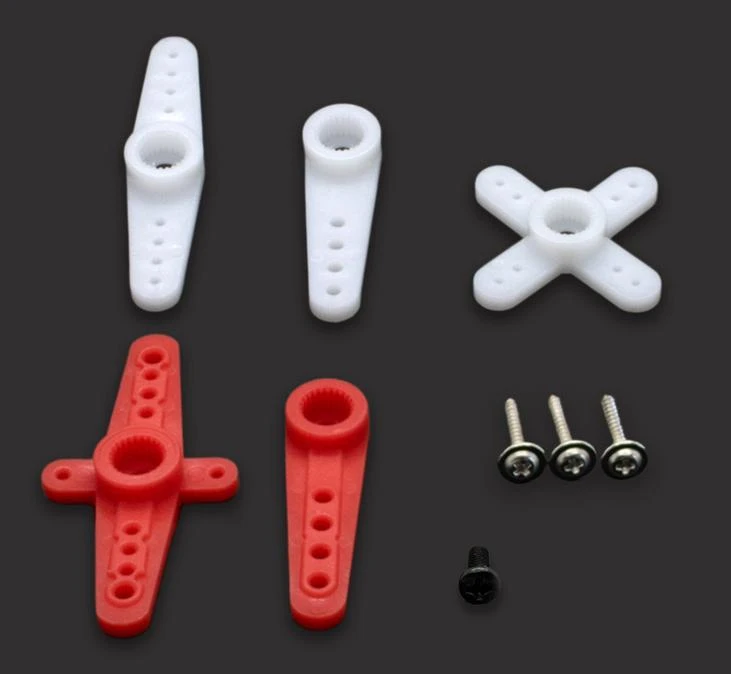

Supplied accessories include two strong red nylon output arms, and three normal strength white nylon output arms.

KST A13-610 Features

• 13 mm body for stronger gears and improved toughness
• Excellent 9.0 Kg.cm torque
• Compact and light weight design
• Excellent torque and speed
• Wide 4S NiMH to 2S LiPo voltage range
• Excellent heat dissipation
• 7075 Alloy casing
• Hardened Steel gears
• Designed for lightweight high performance RC Gliders and Helis

KST A13-610 Servo Specifications

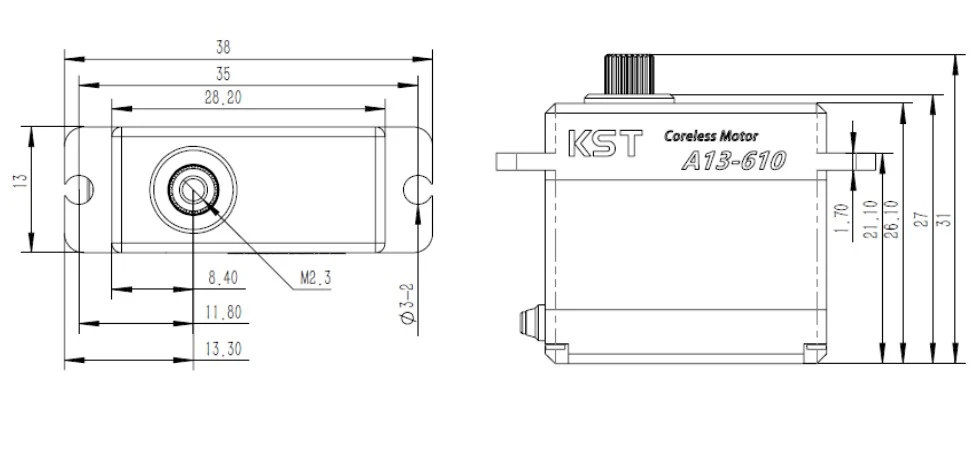

Body dimensions	28.2 mm wide x 13.0 mm thick x 26.1 mm high	1.11″ wide x 0.51″ thick x 1.03″ high
Max dimensions	38.0 mm wide x 13.0 mm thick x 31.0 mm high	1.50″ wide x 0.51″ thick x 1.22″ high
Stall torque (4.8V)	5.5 Kg.cm	76 oz.in
Stall torque (6V)	6.5 Kg.cm	90 oz.in
Stall torque (8.4V)	9 Kg.cm	125 oz.in
Weight	24 g	0.85 oz
Lead length	21 cm	8.3 in
Operating speed (4.8V)	0.13 sec/60°
Operating speed (6V)	0.12 sec/60°
Operating speed (8.4V)	0.1 sec/60°
Operating voltage	4.8V to 8.4V
Operating temperature	-10 – +55 °C
Bearings	2 ball races
Gear material	Hardened steel
Case material	7075 aluminium
Motor type	Coreless DC
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	±50°when 1000-2000us µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 strong red plastic output arms, 3 normal strength white plastic output arms, 2 arm retaining screws, 3 mounting screws
Optional accessories	Integrated Drive System/Mono for the KST A13, Frame with bearing for the KST A13
