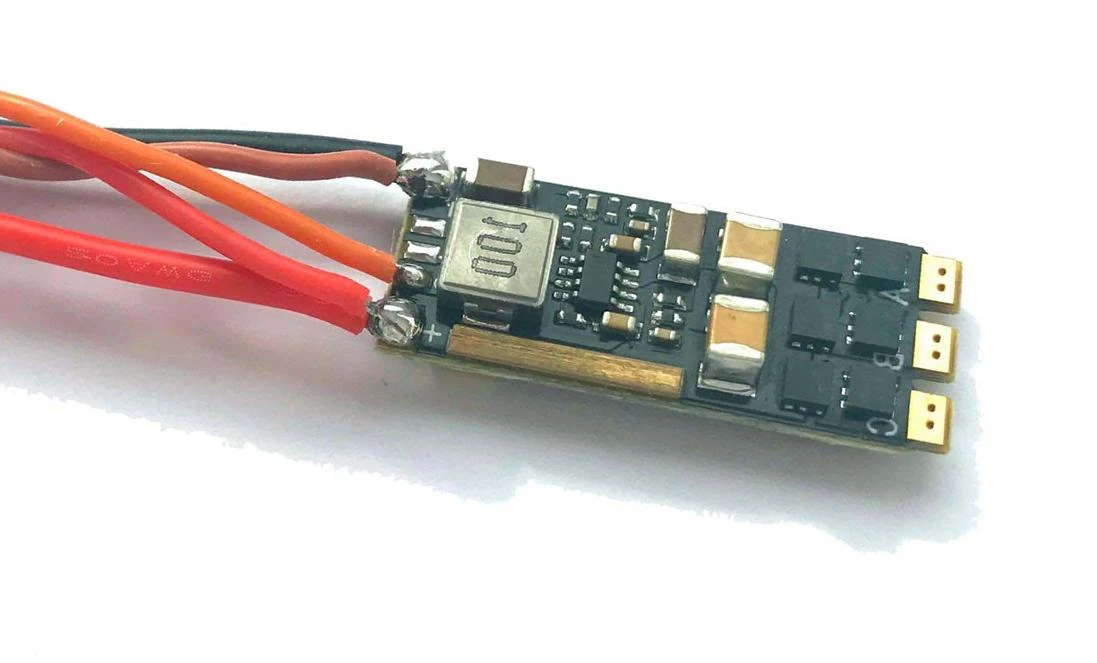

HyperFlight 40A BLHELI-32 ESC With SBEC

The HyperFlight 40A BLHELI-32 SBEC ESC is a lightweight brushless speed control with a 5.2V 3A SBEC running the renowned BLHeli32 firmware. The ESC has been setup for glider operation with the brake on and has a XT60 connector ready fitted.

This ESC is unusual in being a modern lightweight efficient drone type ESC and having a 3A high voltage switching battery eliminator circuit (SBEC) fitted. This makes it ideal for all high performance aircraft where speed control weight and size need to be minimised.

Ready programmed with brake set. No programming required (or possible without an Arduino).

HyperFlight BLHeli32 40A ESC with SBEC Specification
Continuous Current	40A
Peak Current	44A for 10 seconds
Battery	2S – 4S LiPo
SBEC	5.2V @ 3A
Weight inc leads and XT60 plug	TBA
Weight ex leads	TBA
Firmware	BLHeli_32
Programmable	Yes, with Arduino
PCB Size	TBA
Battery connector	5 cm wires, XT60 plug/socket fitted
Motor connector	lands on PCB
RC wire length	15 cm
