Enigma F5J 4m

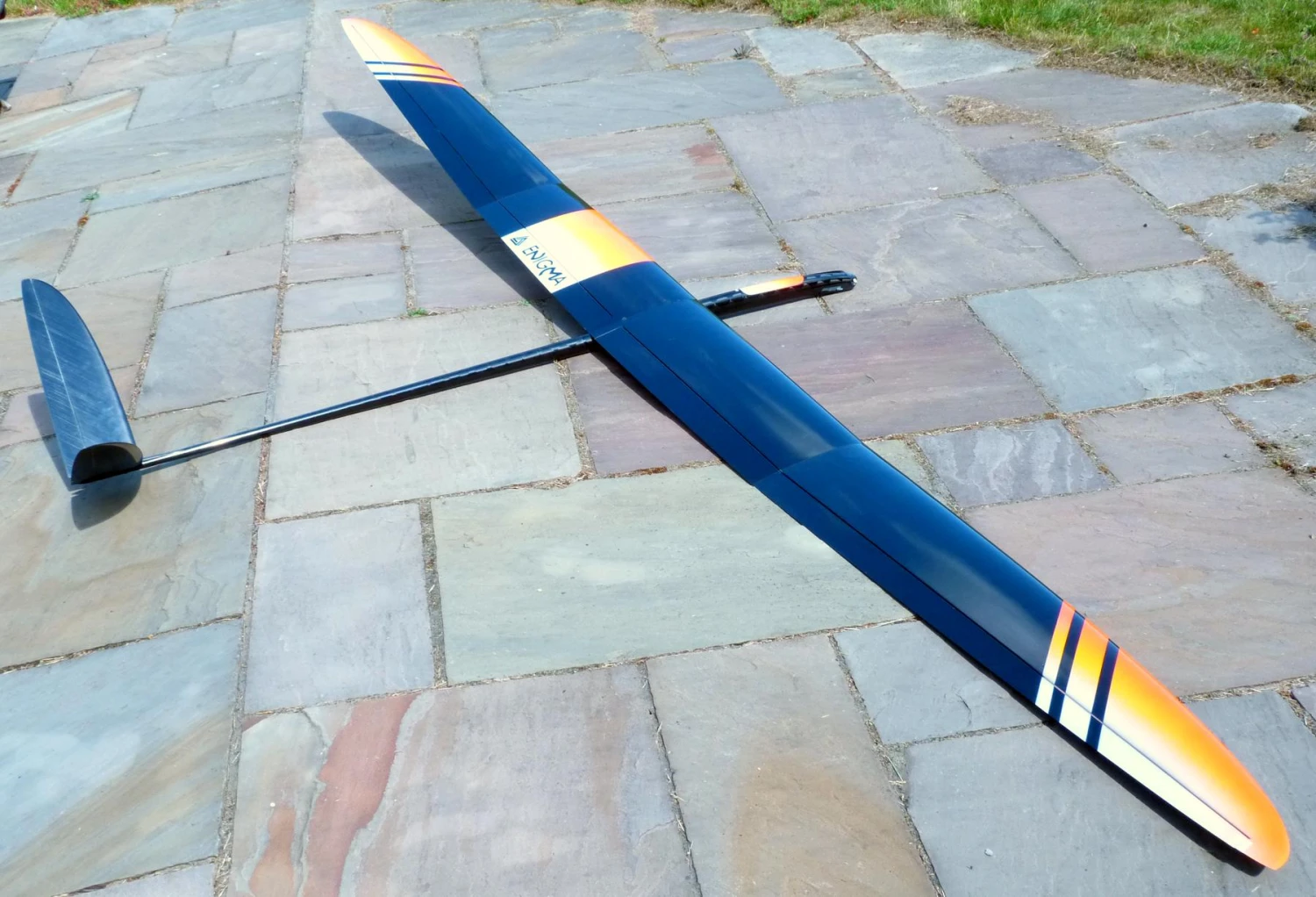

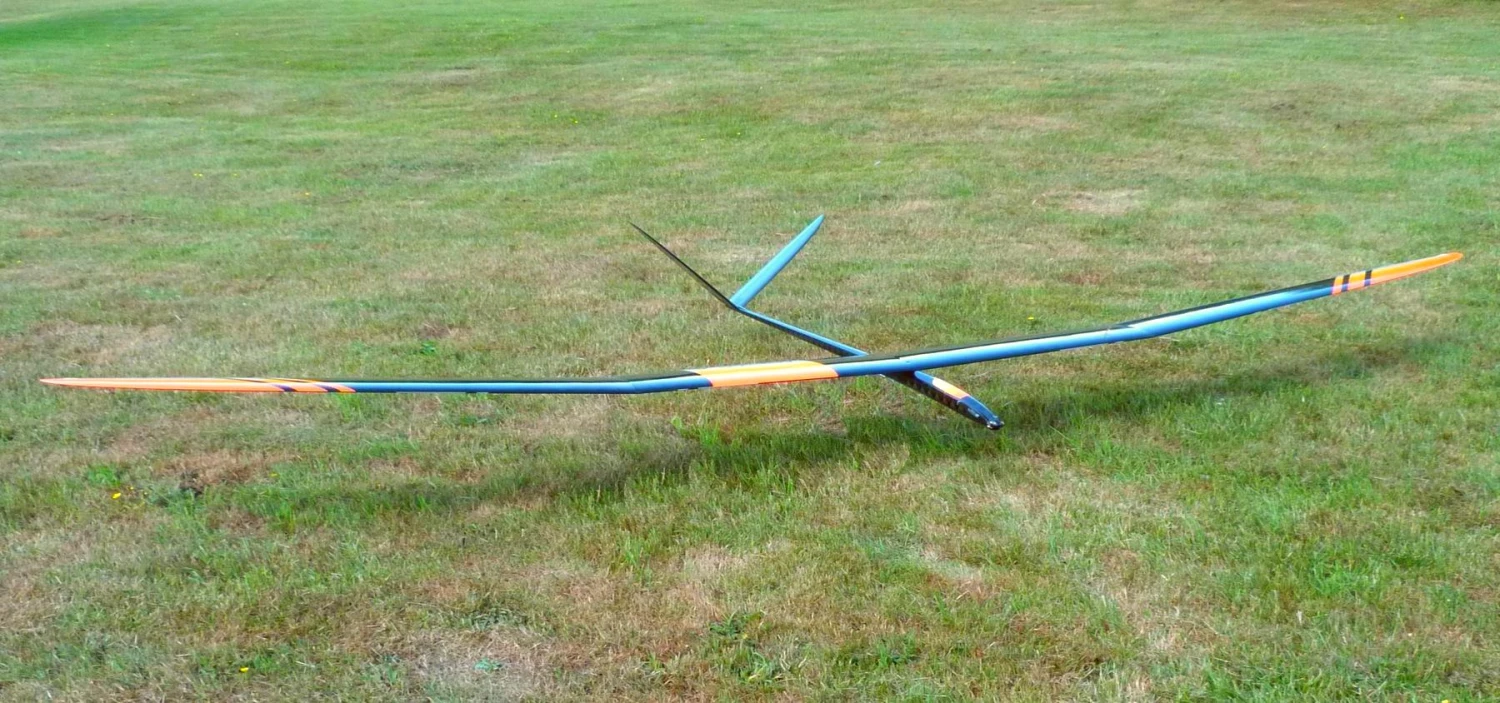

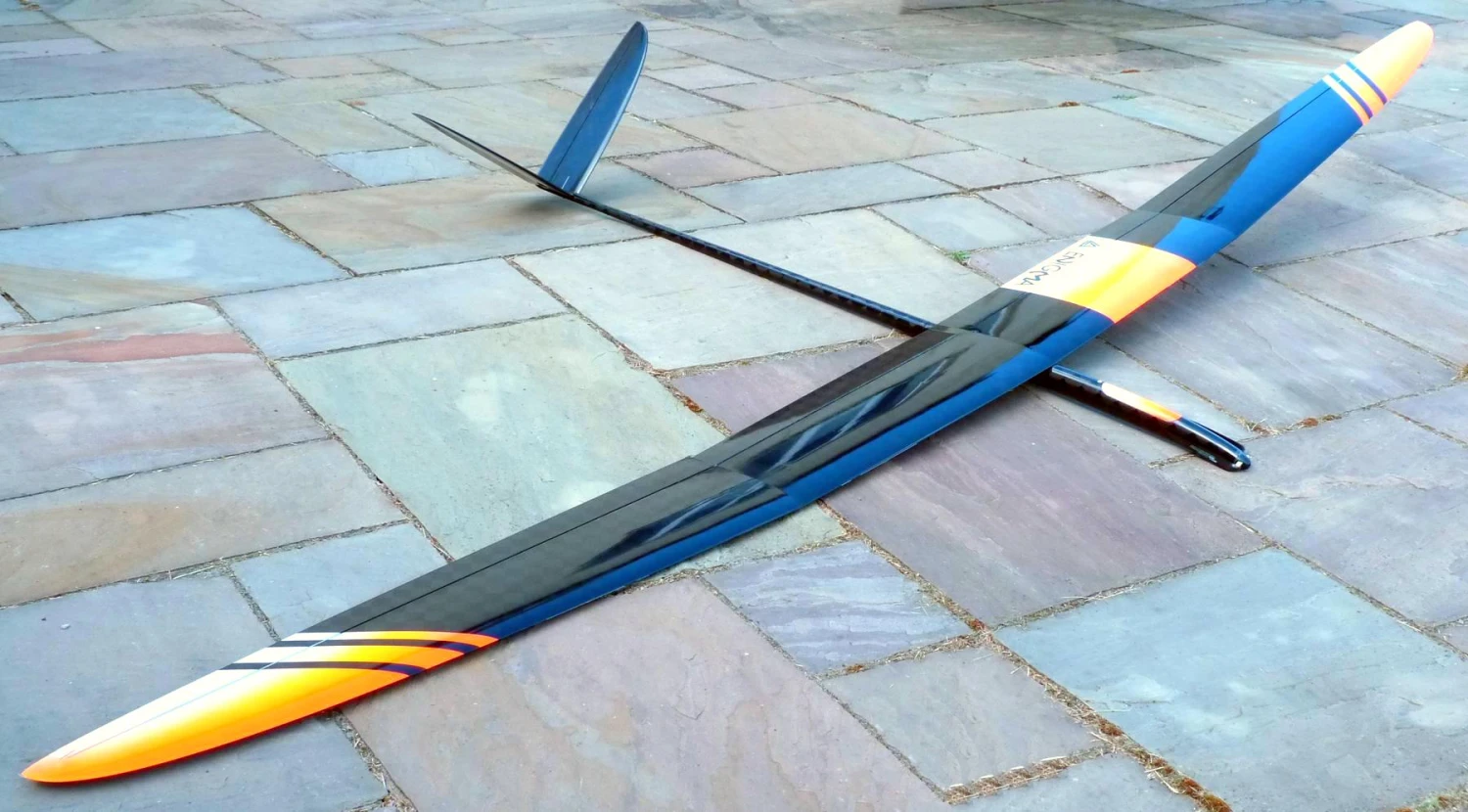

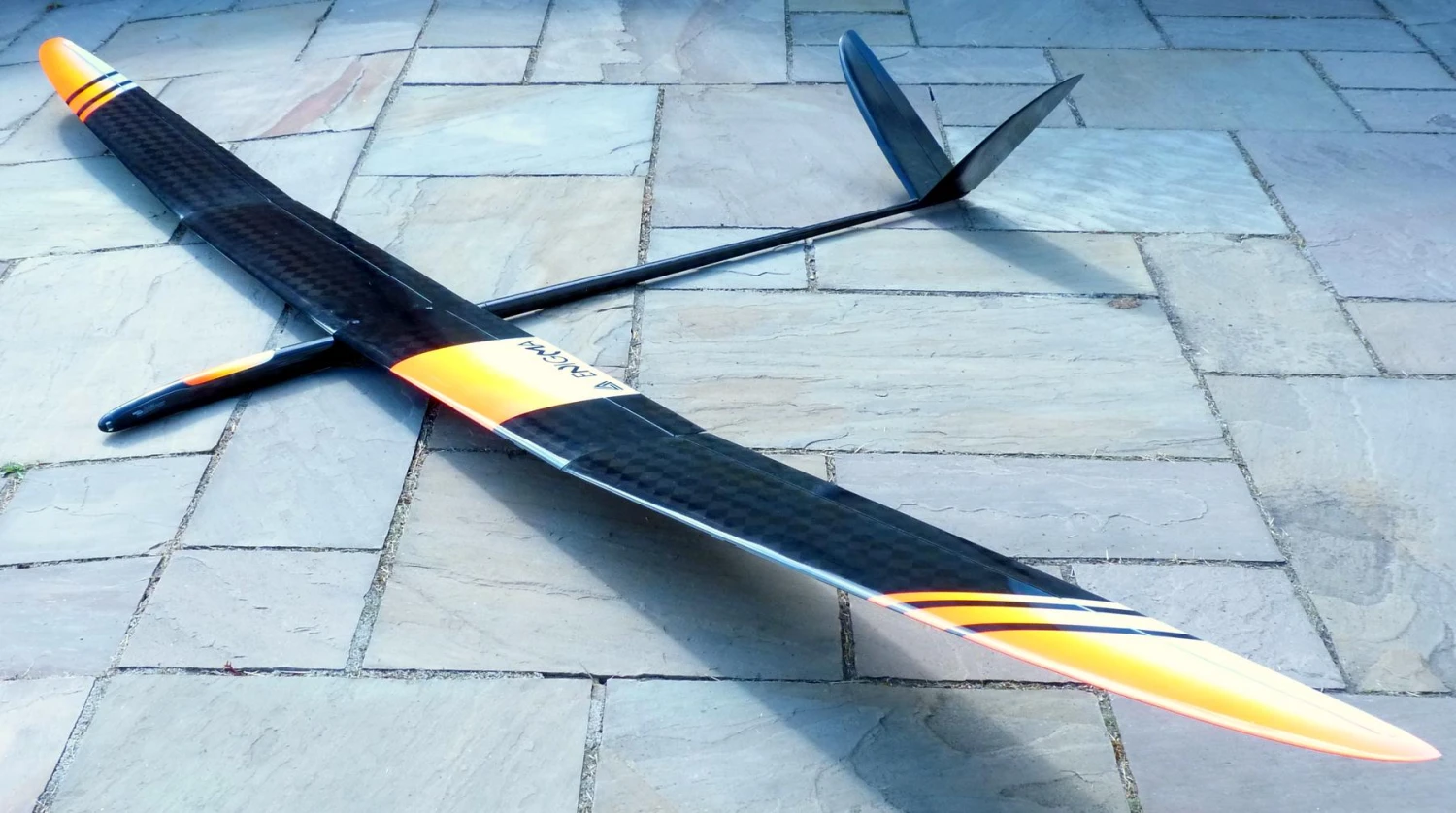

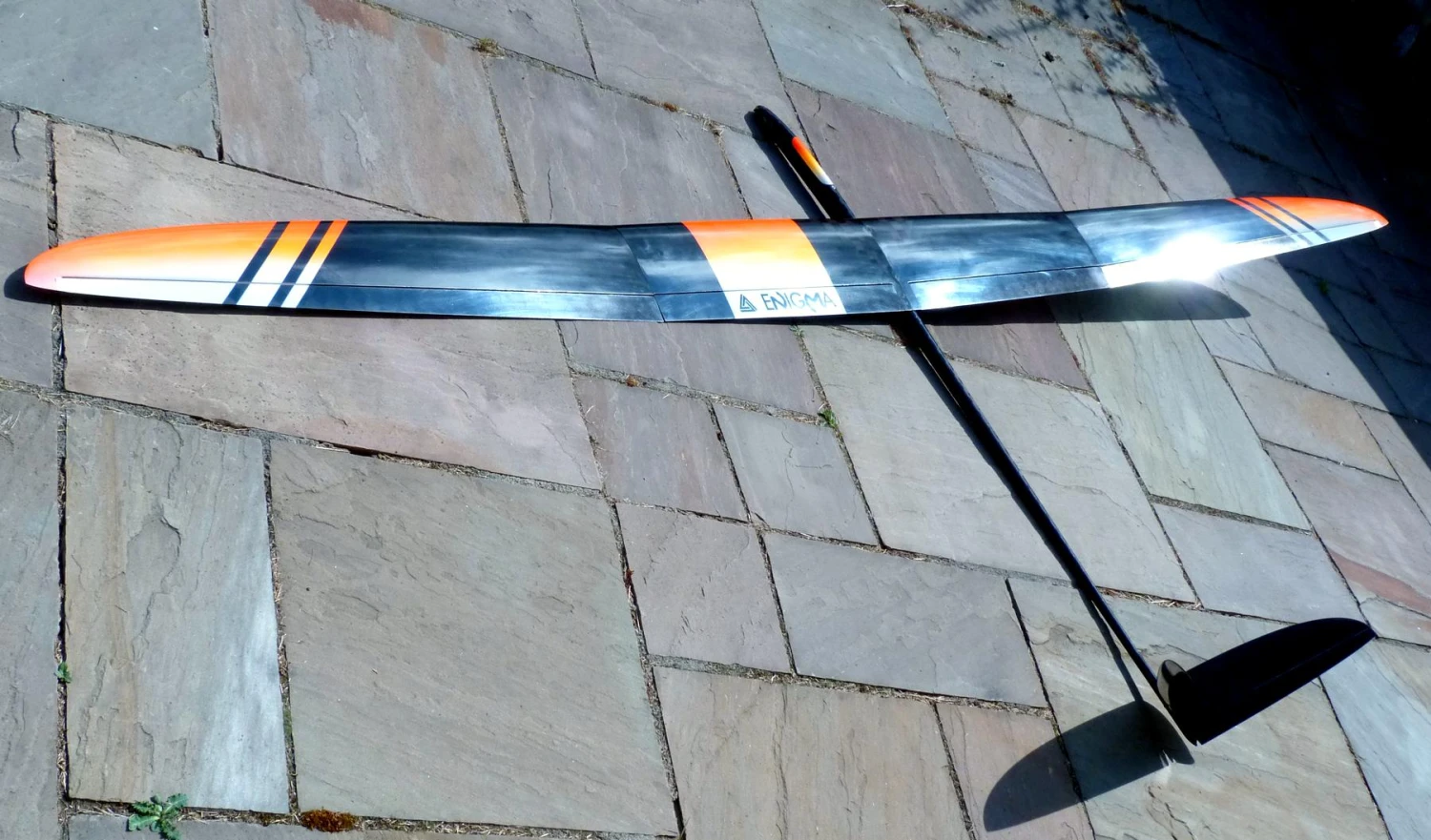

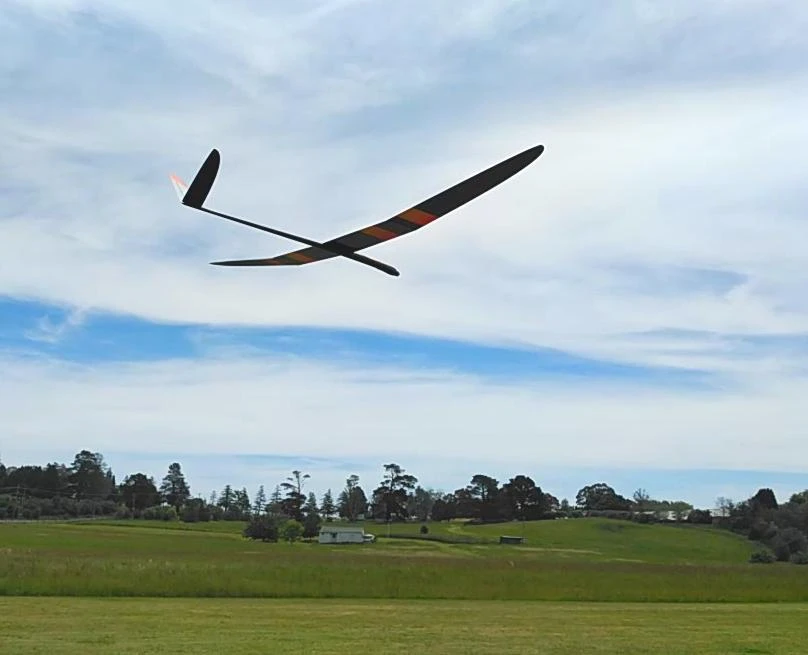

The Enigma F5J is a beautiful 3.95m F5J glider from Russia. A well engineered and attractive F5J competition model with an excellent flying reputation. The finish is nearly as good as that of the top manufacturers and the performance is first class.

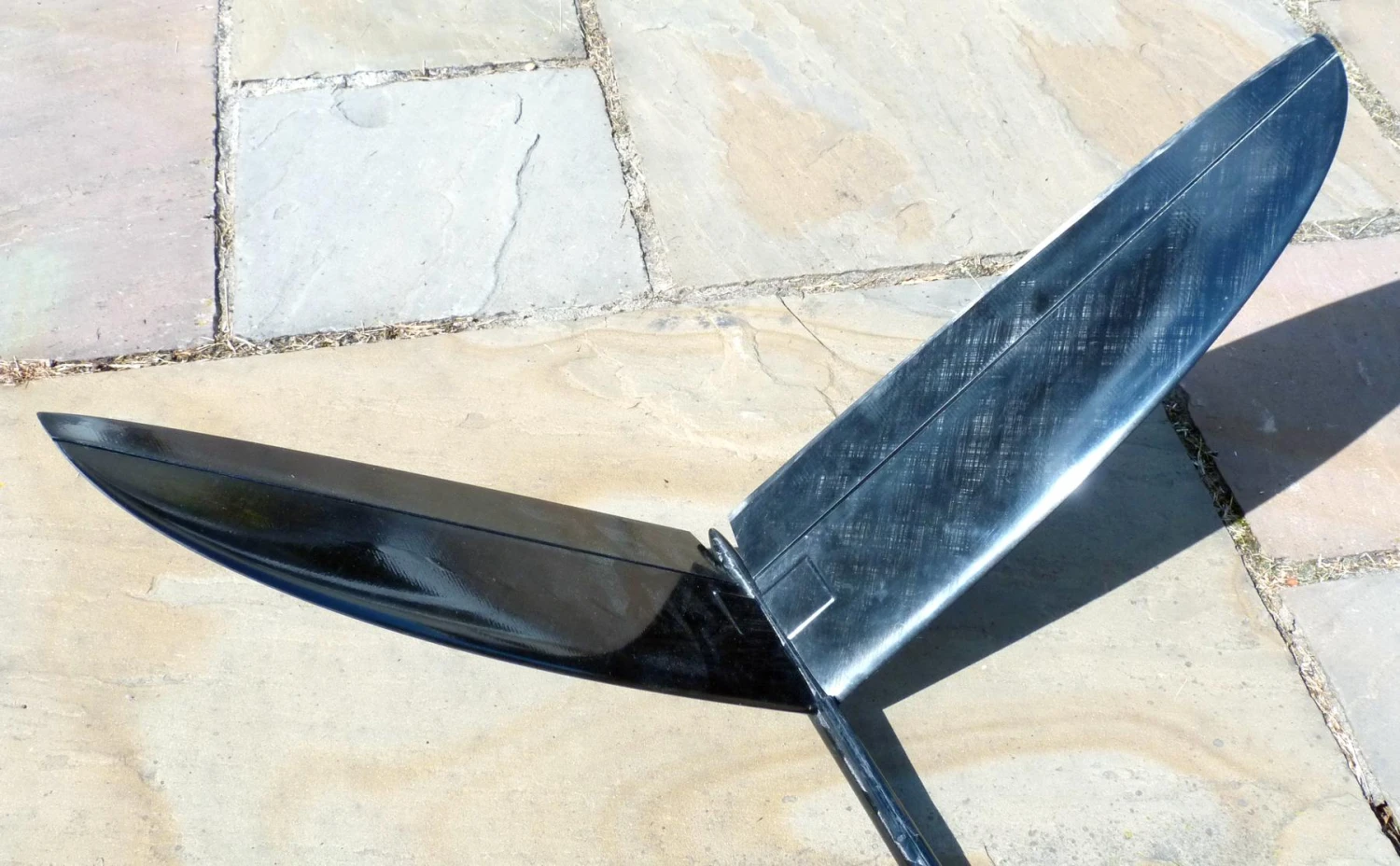

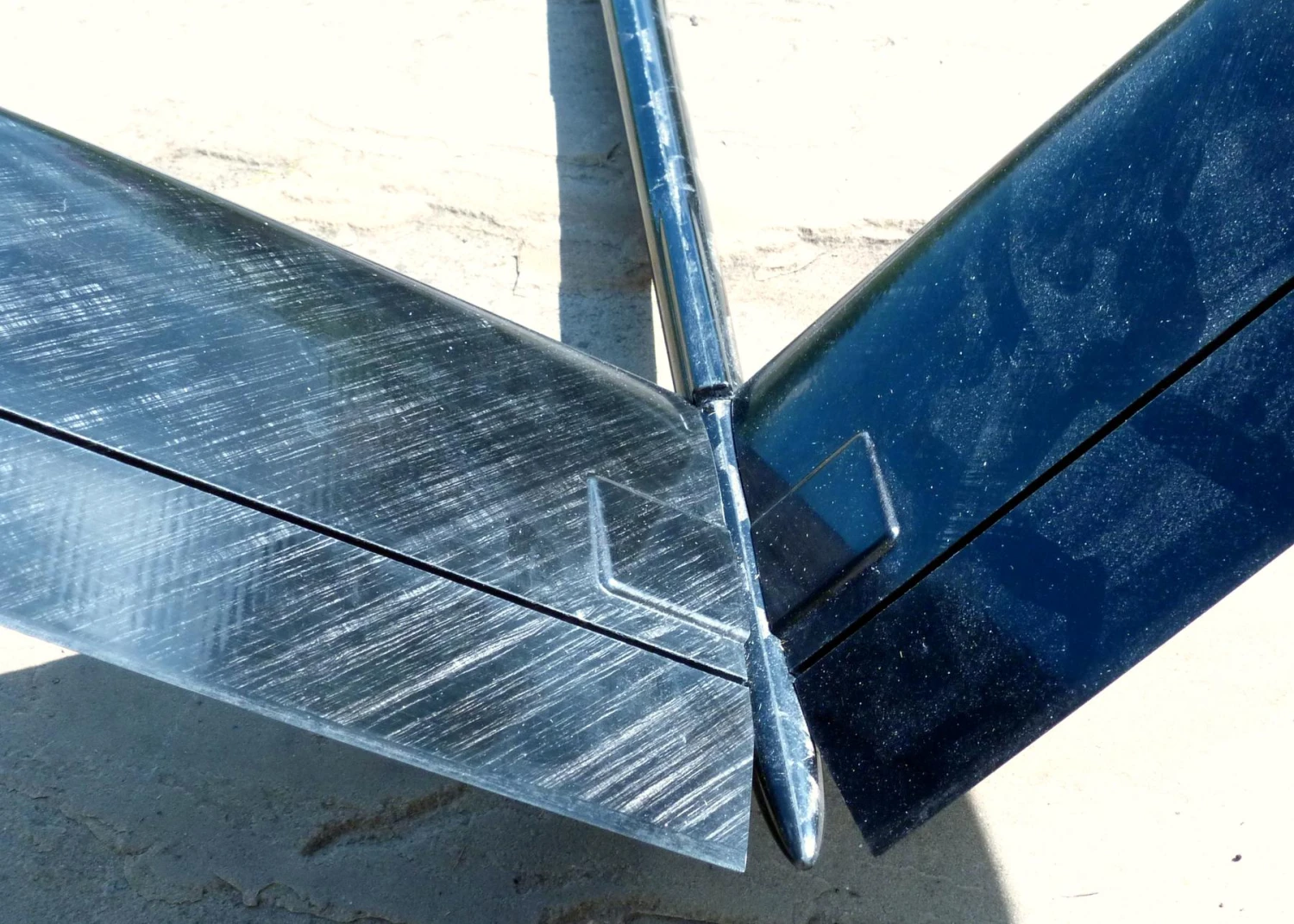

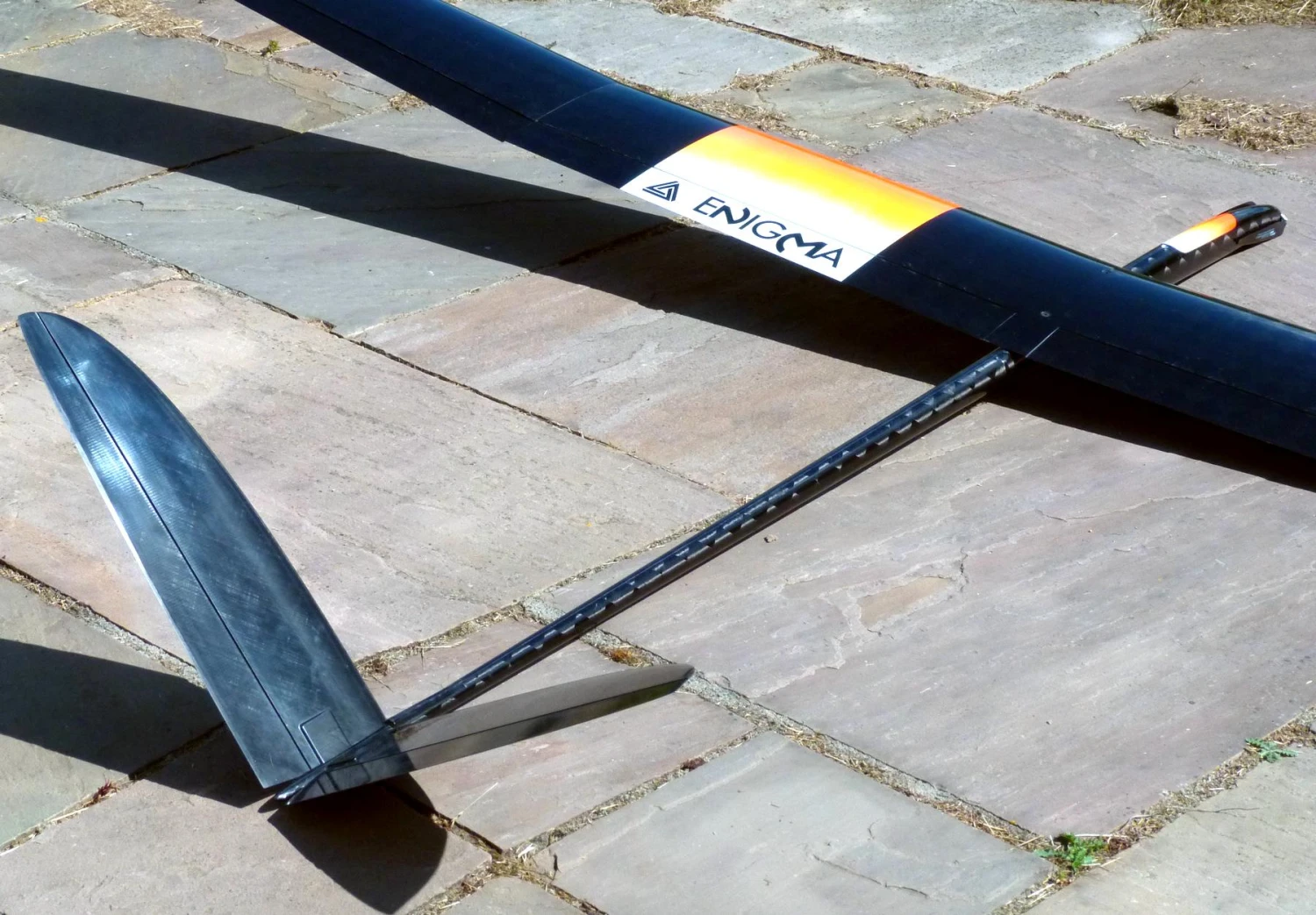

The Enigma major innovation is a very nicely engineered V tail designed for tail mounted KST X08 servos. The elimination of tail pushrods combined with the supplied lightweight tail wiring harness means this configuration does not need substantial extra nose weight, but the RC installation is considerably simplified and the whole of fuselage front is available for the powertrain and ballast.

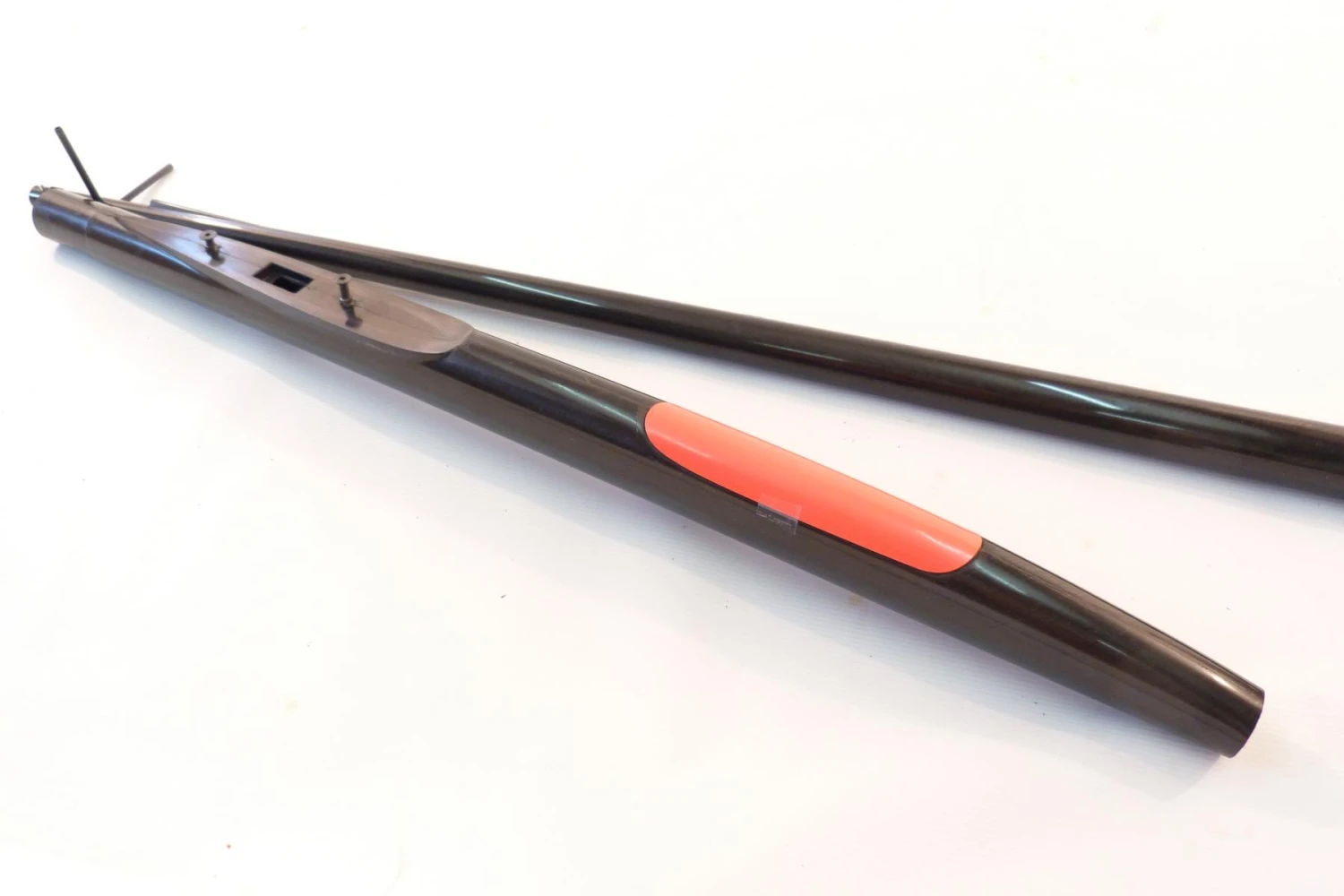

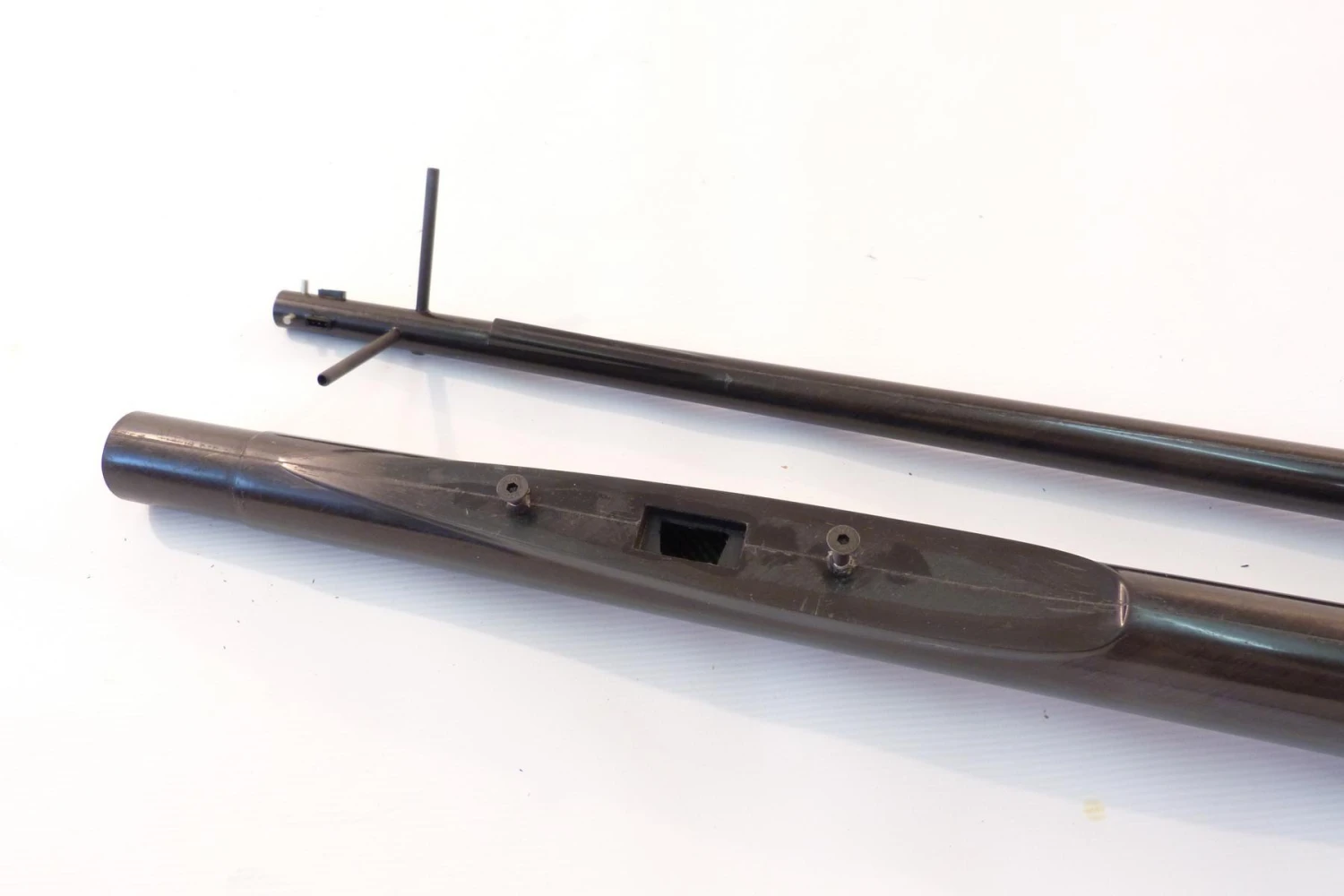

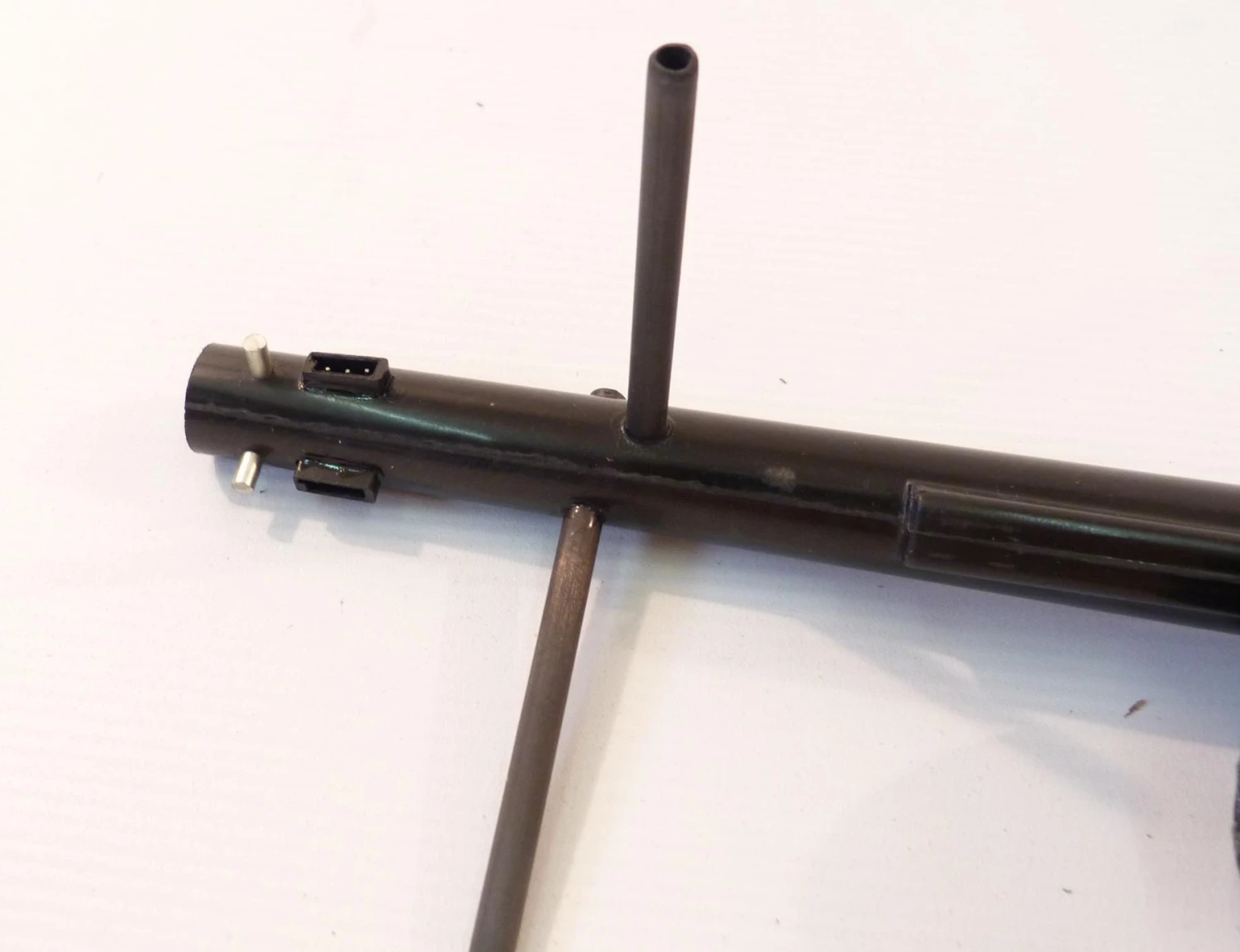

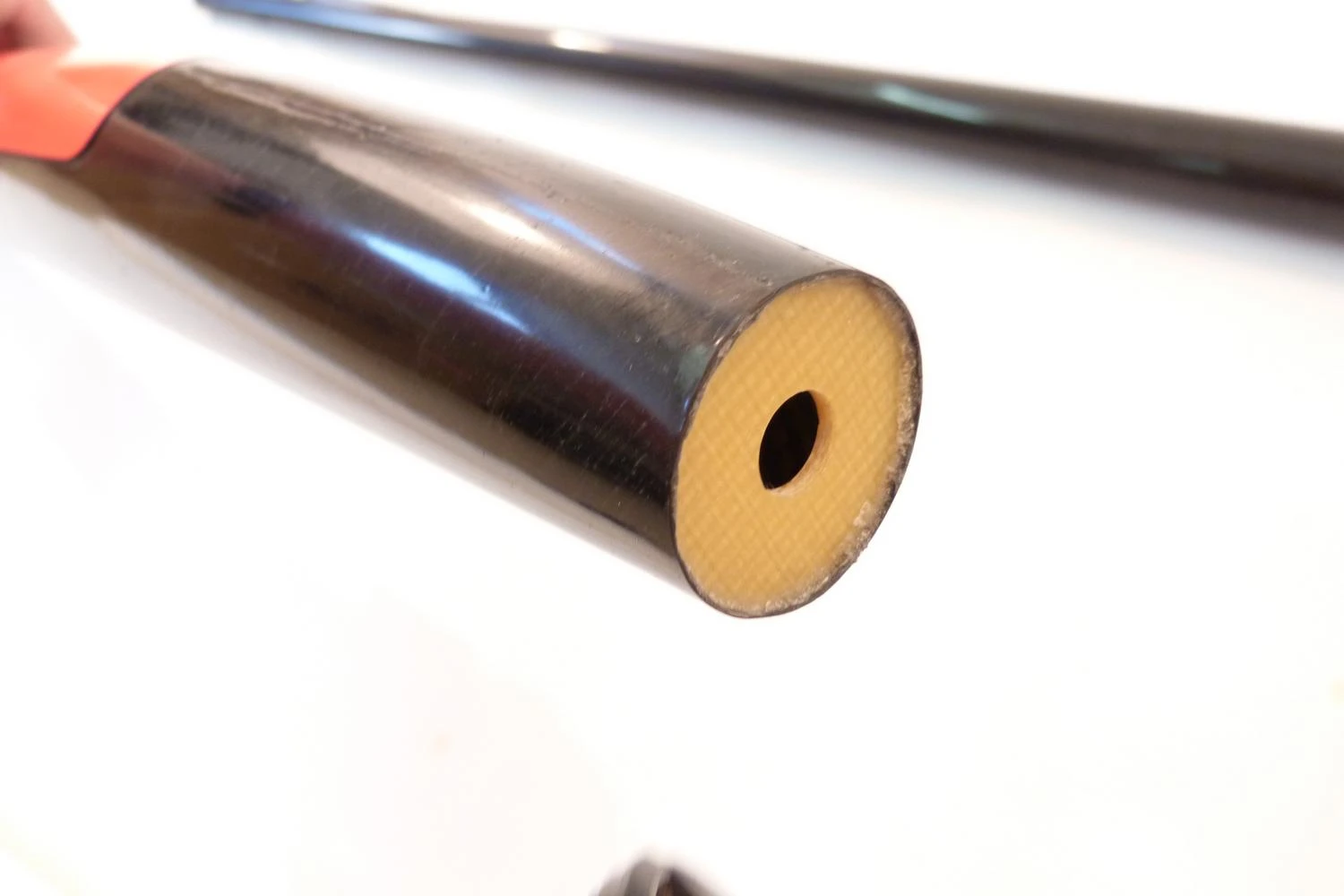

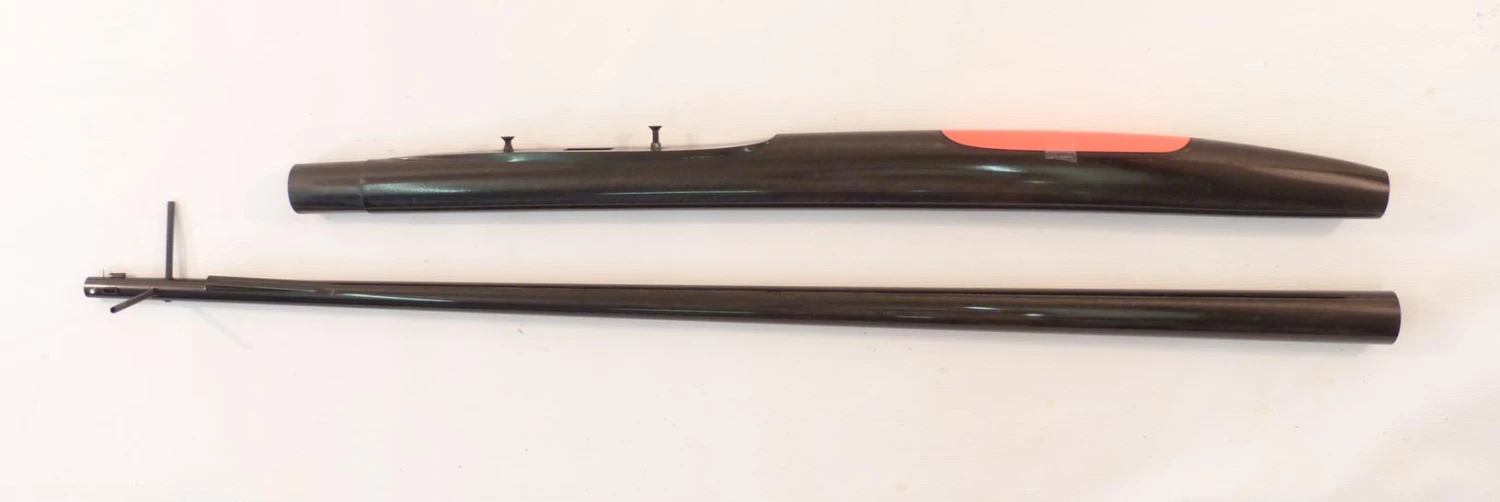

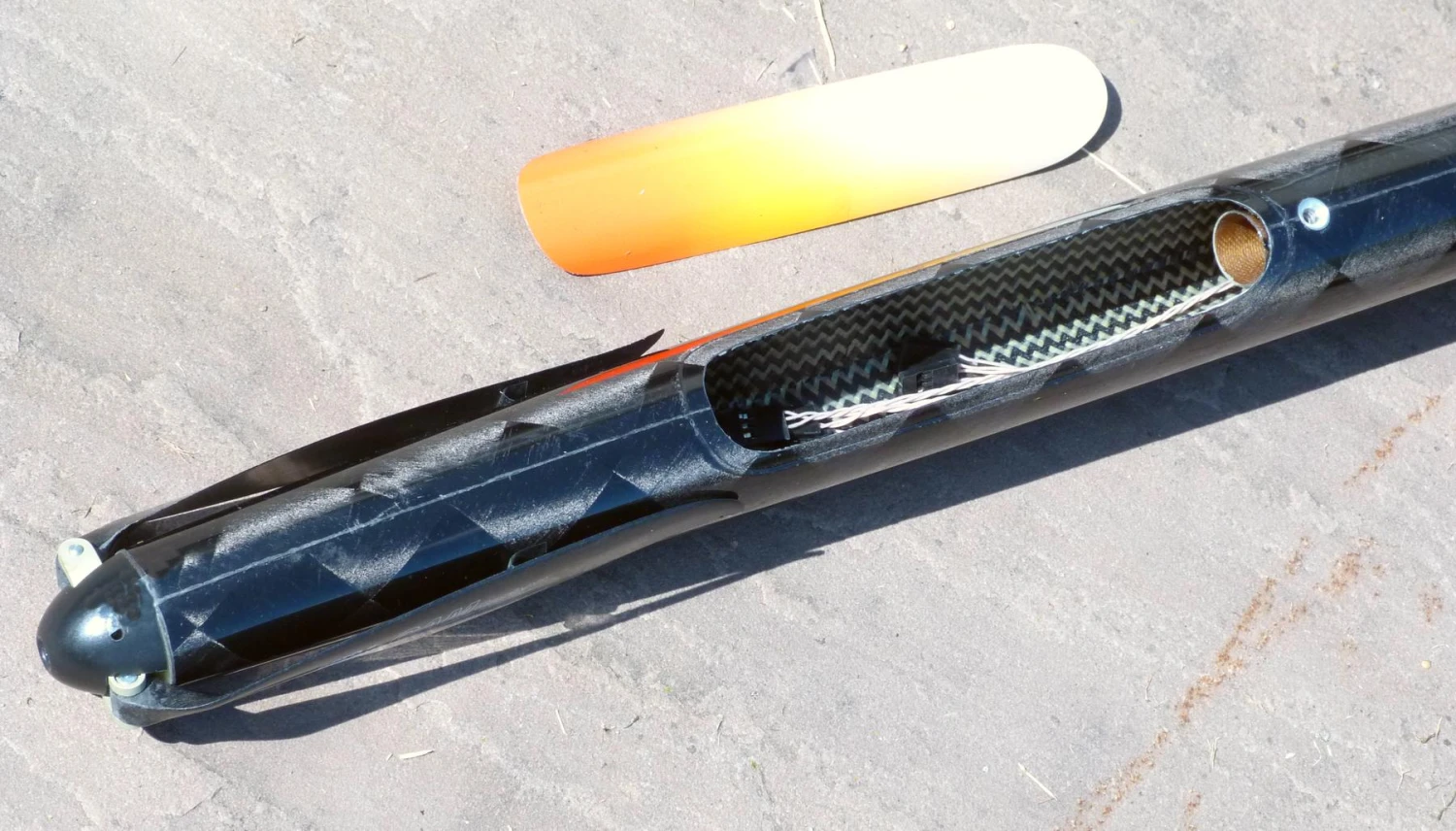

The fuselage 99% completed with the firewall fitted and just the tailboom to be fixed to the forward part. A substantial ballast tube 55 cm long with an internal diameter of 16 mm is ready fitted. The fuselage is a nice simple design with ample space for the powertrain, receiver, and ballast.

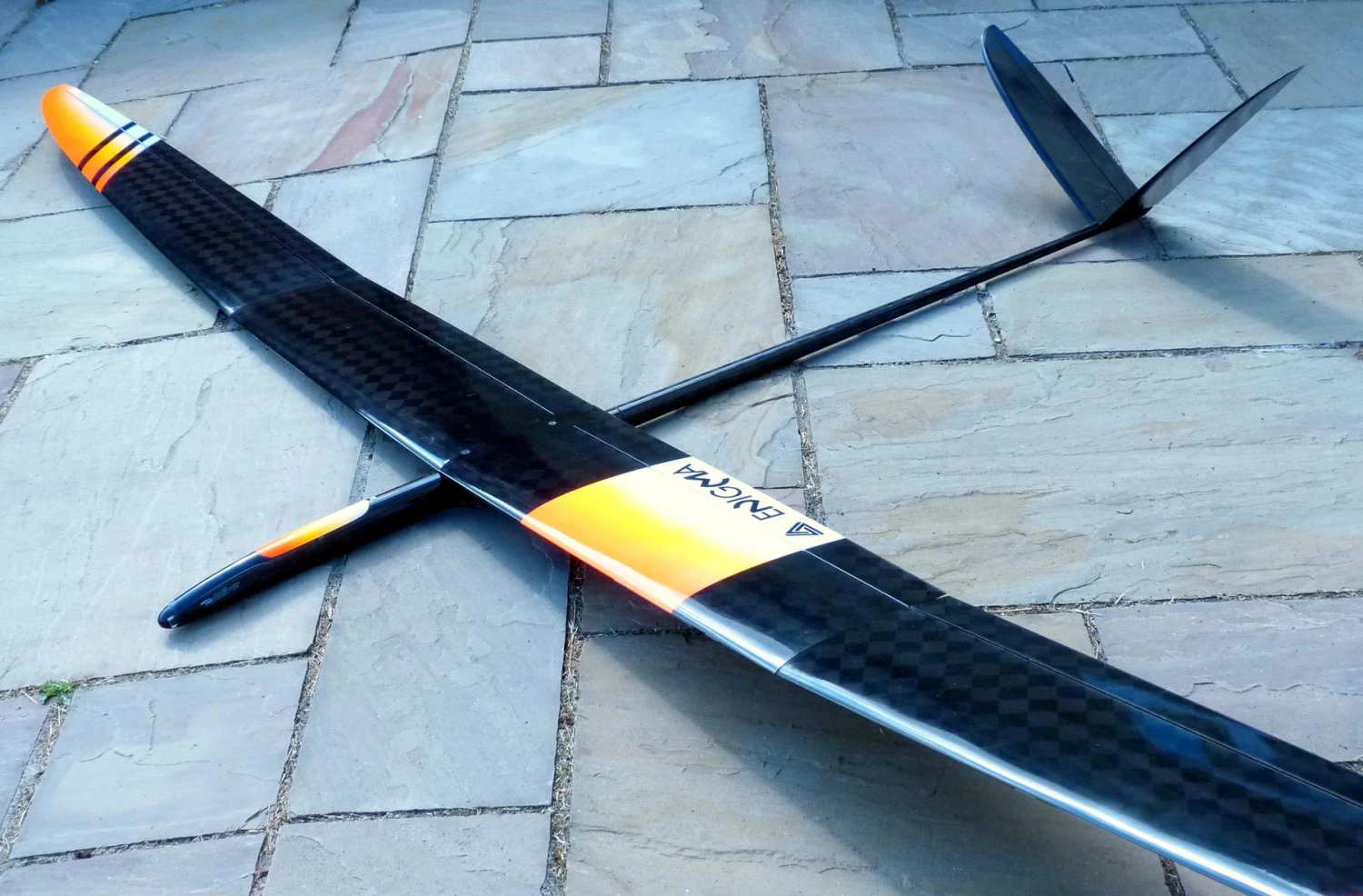

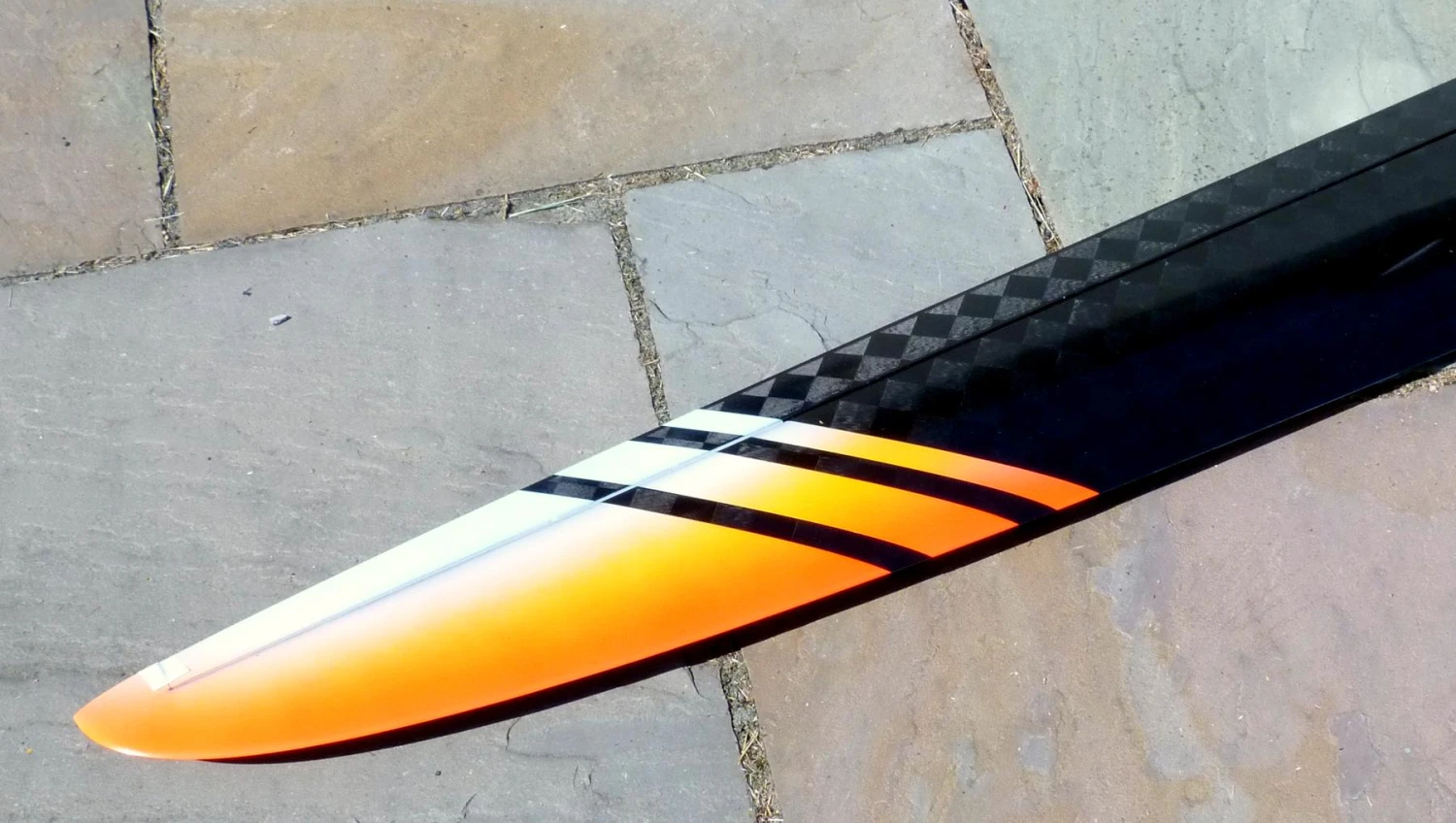

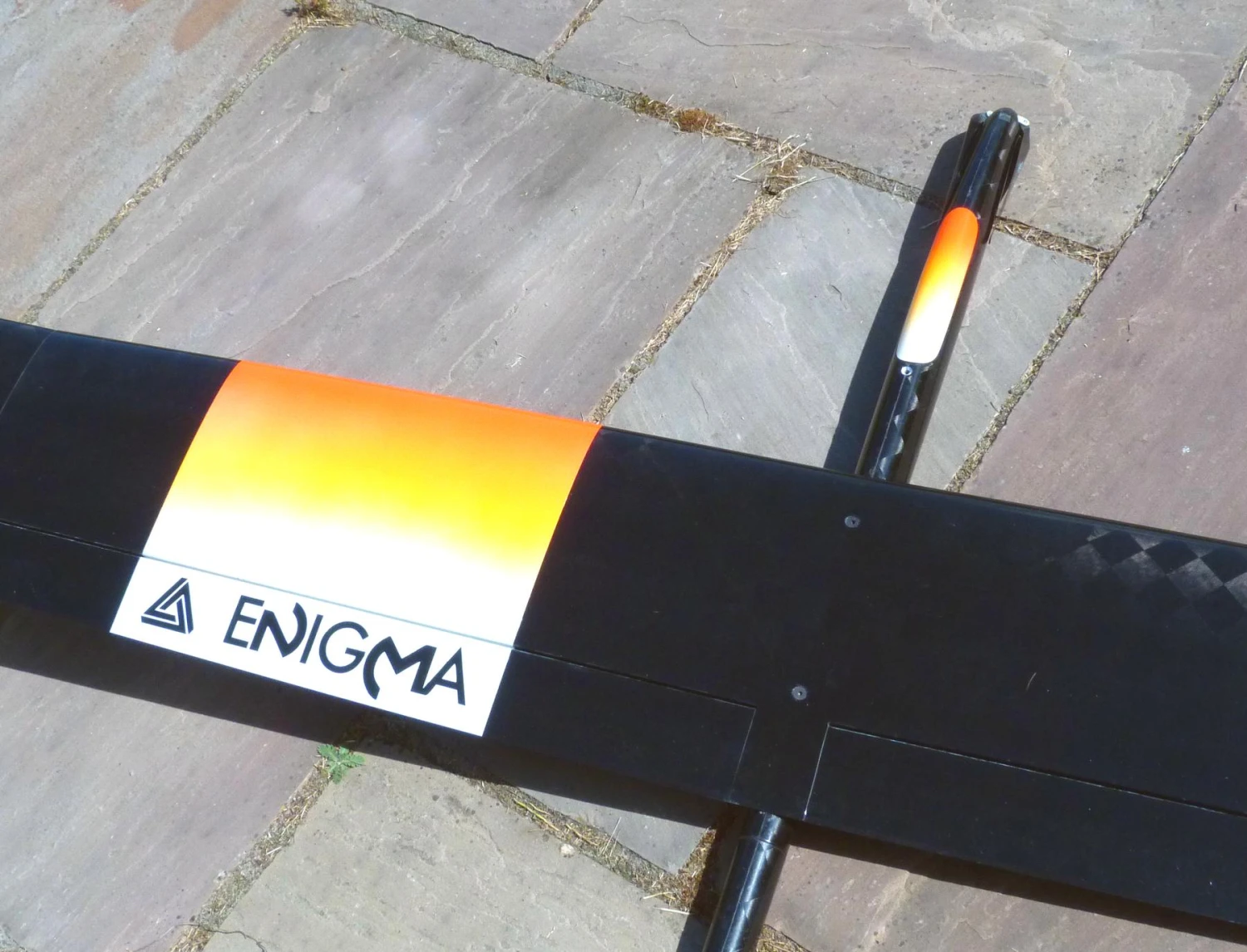

The wing is has XPS foam cores with chequerboard spread carbon skins. The wing spars are improved and are substantial. The wing colour schemes are stylish modern faded designs usually with contrasting white underside stripes. A well made and very lightweight wiring harness built into the wing, with the plug already mounted.

The accessory pack includes wing control horns, clevises and pushrods. And wing and tail servo wiring harnesses as previously stated. The plane is sometimes/was previously called the Skiff and some links give that name. See this very helpful RCGroups Enigma build thead.

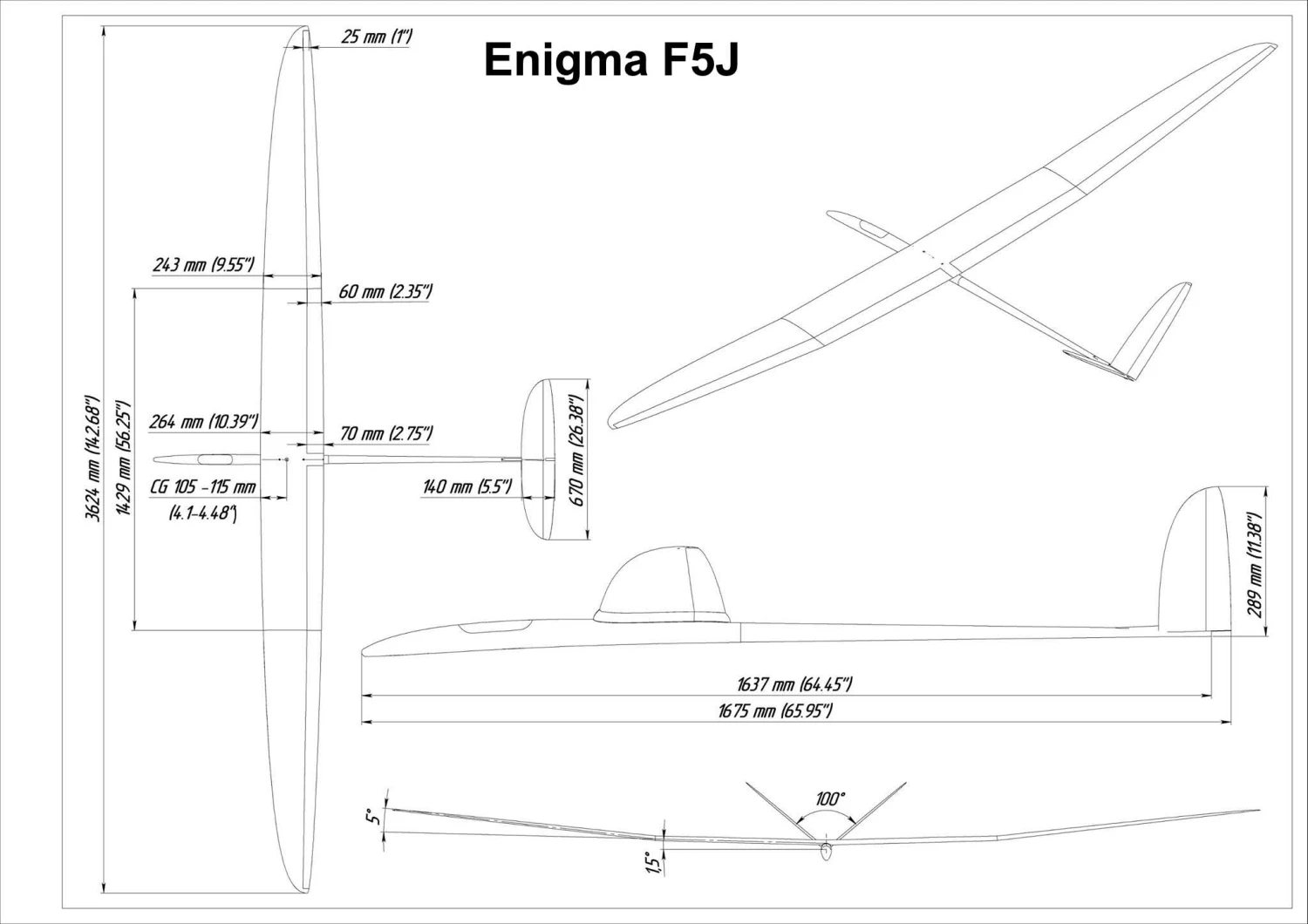

Enigma Specifications
Wing span	4.0 m	156 in
Wing area	80.0 dm2	1240 sq in
Length inc spinner	176 cm	69.1 in
Flying weight from	1475 g	52.0 oz
Wing loading	18.4 g/dm	6.0 oz/sq ft
Aspect ratio	19.5
Wing airfoil	Proprietary
EDA (dihedral)	6.2
Spinner Diameter	32 mm
Centre of Gravity	105 – 115 mm from wing leading edge
Controls	V tail, ailerons, flap, throttle

Enigma Typical Weights
Fuselage	235 g	8.3 oz
Wing centre panel(RHC)	440 g	15.5 oz
Wing tips	460 g	16.2 oz
V tails	55 g	1.9 oz
Accessories	10 g	0.4 oz
Total structure	1200 g	42.3 oz
Receiver	8 g	0.3 oz
Tail servos	16 g	0.6 oz
Aileron servos	20 g	0.7 oz
Flap servos	26 g	0.9 oz
Speed control	25 g	0.9 oz
Motor	80 g	2.8 oz
Prop & spinner	20 g	0.7 oz
Battery	80 g	2.8 oz
Flying weight	1475 g	52.0 oz

Recommended Servos
V Tail	KST X08N, KST A08N, Blue Bird BMS-A10S
Aileron	KST X10 Mini, KST X10, MKS DS6100, MKS HV6100, MKS HV6130, Blue Bird BMS-115WV, Blue Bird BMS-125WV
Flap	KST X10 Mini, KST X10, MKS DS6100, MKS HV6100, MKS HV6130, Blue Bird BMS-115WV, Blue Bird BMS-125WV

Enigma F5J Powertrain Recommendations
Powerline Micro 1015	3S 1Ah LiPo, 16×8 prop (10 m/s, 2000 fpm, 43A)
Powerline Micro 1020	3S 1Ah LiPo, 16×8 prop (11 m/s, 2000 fpm, 44A)
Powerline Micro 1025	3S 1Ah LiPo, 16×8 prop (10 m/s, 2000 fpm, 43A)
Leomotion L3013-4550	3S 1Ah LiPo, 15×9 prop (11 m/s, 2200 fpm, 57A)
XPower F2919/10 Light	3S 1Ah LiPo, 10×6 prop
XPower F2925/8 Windy	3S 1Ah LiPo, 10×5 prop

Enigma Control Movements
Rudder	30 mm each way
Elevator	10 mm up, 10 mm down
Ailerons	13 mm up, 10 mm down
Flap	80 degrees down
Speed camber	flap 1.5 mm up, aileron aligned with flap
Cruise camber	flap 0 mm, aileron aligned with flap
Thermal camber 1	flap 3 mm down, aileron aligned with flap
Thermal camber 2	flap 5 mm down, aileron aligned with flap
Mix aileron ->rudder	25%
