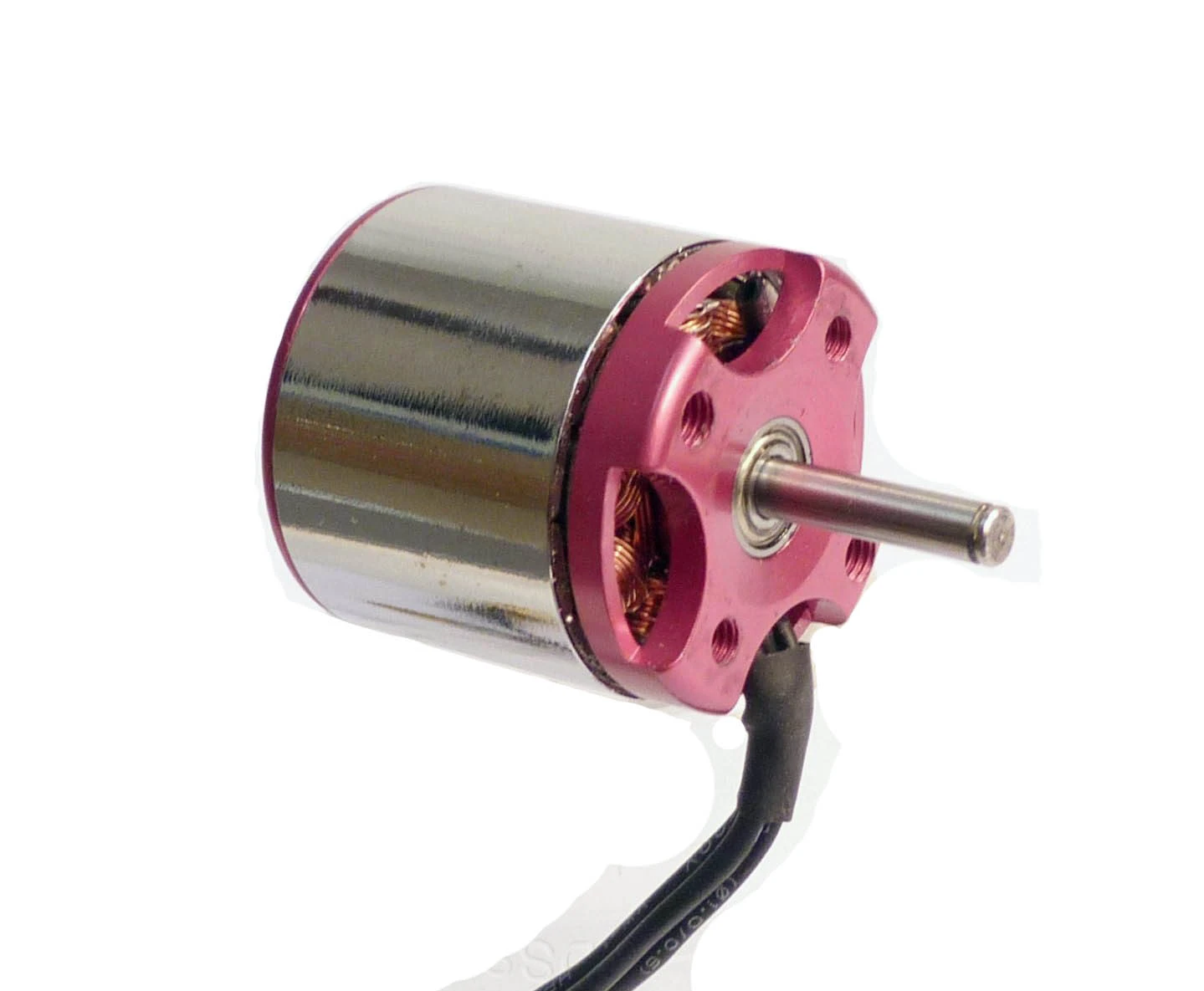

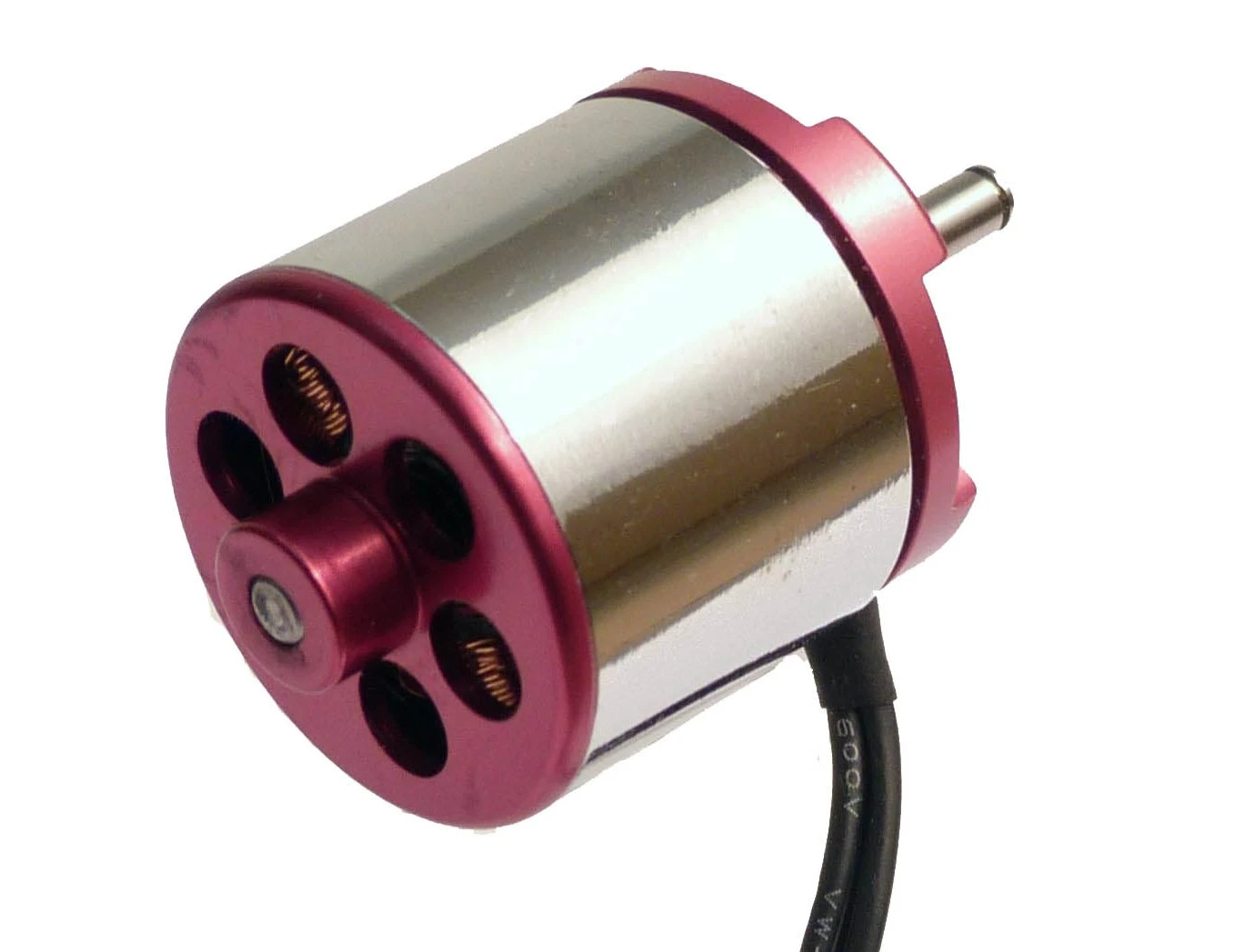

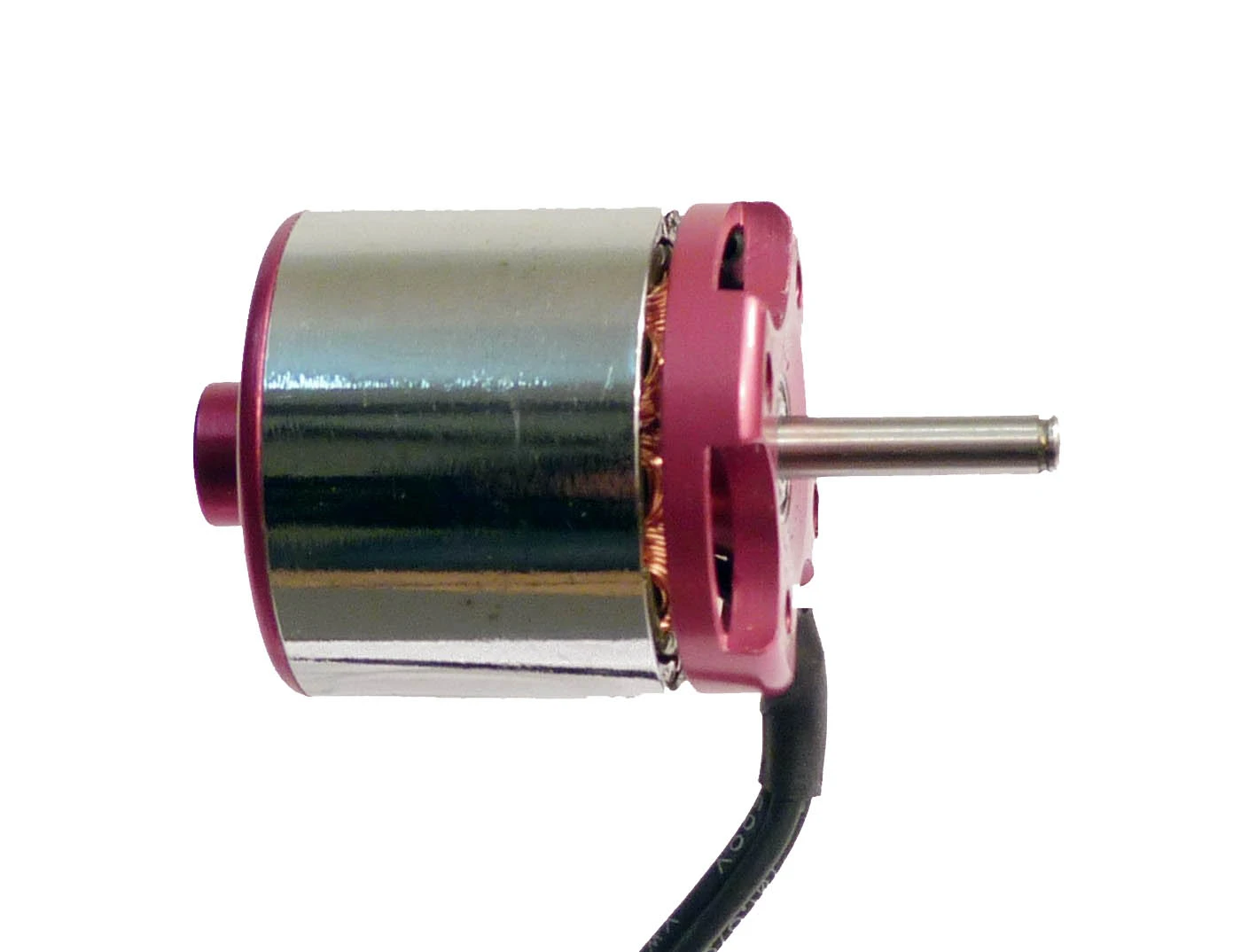

ADH300L / MM1914-11001100 RPM/V 39g Front Mount Outrunner

The AEO RC MM1914-1100 / ADH300L is a very nice small but powerful outrunner that is narrow enough to fit in small glider noses. It is excellent for electrifying most of the F3-RES models we sell. Suitable for electric models weighing up to about 650g.

It can be pushed to about 150W on 3S LiPo batteries or 100W in 2S LiPos.

Note the manufacturer label the motor AEO RC MM1914-1100 / ADH300L but we measured the Kv as 1280 RPM/V

Interesting RCGroups assesment.

AEORC MM1914-1100 / ADH300L Specifications
Motor name	ADH300L	Outrunner
Motor+GB weight	39 g	1.38 oz
Motor diameter	23.0 mm	0.91 in
Motor length	27.0 mm	1.06 in
Lead length	6.0 cm	2.36 in
Shaft diameter	3.0 mm	0.12 in
Mounting info	2 M2.5 holes on 16.3 mm & 2 M3 holes on 18 mm diameter circle
Measured Rm	161 mR
Specified Kv	1100 RPM/V
Measured Kv	1280 RPM/V
Measured Io	0.7 A @ 10 V
Max efficiency (10 V)	80 % @ 7 A
Operating efficiency (10 V)	75 % @ 13 A
Outrunner Motor Km	19 Nm/W^.5 X1000
Outrunner Motor Km/Kg	477 Nm/(W^.5 Kg)
Recommended battery	2S or 3S LiPo
Rec max LiPo capacity	1 Ah

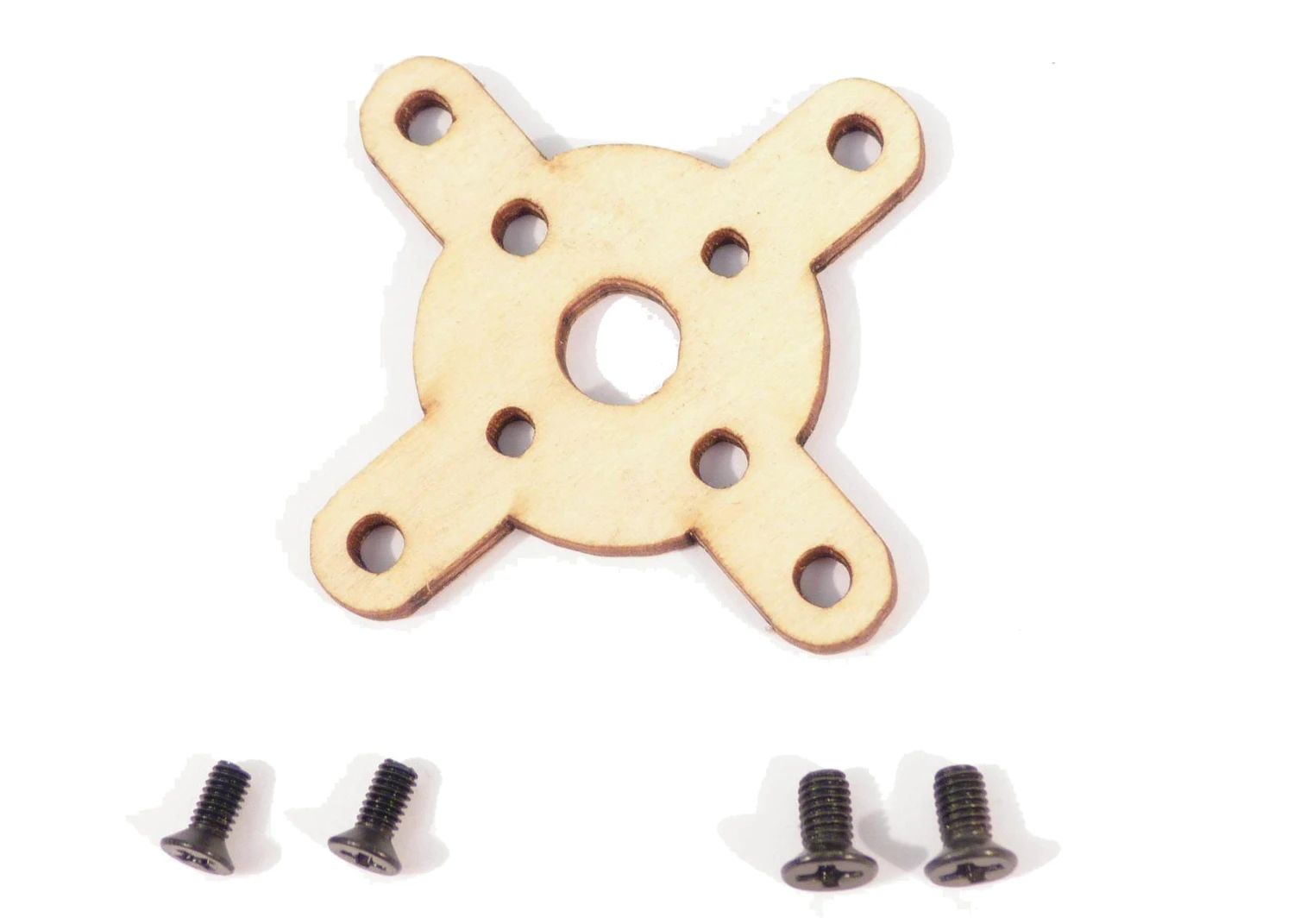

Supplied accessories	4 mounting screws, plywood motor mount
Mounting	On the same side as the prop shaft.
2S LiPo Performance
Recommended prop	10×6; 9×6, 9×5, 8×5
Input power	100 W on 10×6 prop
Current	14 A on 11×7 prop
Rate of climb	5 m/s for 500 g glider
3S LiPo Performance
Recommended prop	8×5; 8×4;7×5; 7×4
Input power	150 W on 8×5 prop
Current	14 A on 8×5 prop
Rate of climb	6 m/s for 500 g glider

SKU: MM1914C
